3000   !       Boothead.s - BIOS support for boot.c            Author: Kees J. Bot
3001   !
3002   !
3003   ! This file contains the startup and low level support for the secondary
3004   ! boot program.  It contains functions for disk, tty and keyboard I/O,
3005   ! copying memory to arbitrary locations, etc.
3006   !
Expand/Collapse Item3007    ! The primary bootstrap code supplies the following parameters in registers:
These are the same values that were passed into bootblock.s.
3008   !       dl      = Boot-device.
3009   !       es:si   = Partition table entry if hard disk.
3010   !
3011
3012   .define begtext, begdata, begbss
3013   .data
3014   begdata:
3015           .ascii  "(null)\0"      ! Just in case someone follows a null pointer
3016   .bss
3017 begbss:
3018
Expand/Collapse Item3019            o32         =     0x66  ! This assembler doesn't know 386 extensions
In Makefile, boothead.s is compiled with the -mi86 option (LD86 contains the mi86 option).  This option uses the machine instructions (mi) of the 8086 system which does not have 32-bit registers (like eax, ebx, etc.).  If an instruction is needed that uses a 32-bit value, the 8086 instruction must be prefixed with 0x66.

Look at line 3933.  If the -mi86 option is used and the retf instruction has no prefix, the instruction jumps to the address specified by the last 2 bytes on the stack (the offset) and the next-to-last 2 bytes on the stack (the segment).  However, if the last 4 bytes on the stack are the offset and the next-to-last 4 bytes on the stack are the segment and the -mi86 option is used, the instruction must be prefixed with 0x66.  On lines 3922-3925, these 8 bytes are pushed on the stack.

Expand/Collapse Item3020            BOOTOFF     =   0x7C00  ! 0x0000:BOOTOFF load a bootstrap here
Expand/Collapse Item3021            LOADSEG     =   0x1000  ! Where this code is loaded.
Expand/Collapse Item3022            BUFFER      =   0x0600  ! First free memory
The bootstrap (which is bootblock.s) loaded this code (the secondary boot loader) at address 0x1000:0x0000.  If the user wishes to boot a different partition, the bootstrap from that partition is loaded at address 0x0000:0x7C00 and the boot process repeats itself (the bootstrap loads the secondary boot loader which loads the kernel). masterboot.s and bootblock.s describe this process in greater detail.
Expand/Collapse Item3023            PENTRYSIZE  =       16  ! Partition table entry size.
Expand/Collapse Item3024            a_flags     =        2  ! From a.out.h, struct exec
In your book, look at line 01400.  This is the header file a.out.h.  The first thing declared in this file is the struct exec.  All minix executables (with a few exceptions like bootblock and masterboot - these 2 files must begin with executable code) begin with headers.

a_flags is at an offset of 2 bytes, a_text is at an offset of 8 bytes, and so on.  a_flags describes the kernel (with the options shown on lines 3029-3033) and a_text, a_data, a_bss, and a_total are sizes.

Note that the A_SEP flag describes this executable (the secondary boot loader) whereas the K_I386, K_RET, K_INT86, and K_MEML flags describe the kernel.

3025           a_text      =        8
3026           a_data      =       12
3027           a_bss       =       16
3028           a_total     =       24
Expand/Collapse Item3029            A_SEP       =     0x20  ! Separate I&D flag
Read section 4.7.1 and the first 10 paragraphs of section 4.7.3 of Operating Systems and try to understand as much as you can.  Some of the terminology may be unfamiliar so I will give a short description of the concepts involved.

This executable (the secondary boot) is compiled with the -mi86 option and runs in real mode and not in protected mode.  For this reason, the secondary boot is not be able to take advantage of the protection features of protected mode.  However, since this is the first time we've run into the A_SEP flag, it's a good place to discuss shared vs. separate segments.

In protected mode, the text (code) and the data+bss+heap+stack (I will refer to this as the total data - see the next paragraph for a description of each of these) in an executable with separate text and total data segments are protected from one another.  For example, if the code tries to jump to a memory address that's within the total data segment, the hardware triggers a segment violation.  If they're not separate (A_SEP in a_flags is not set), chaos results.  Another advantage of separating the text and total data is that the text can be shared among multiple instances of the same program.  The total data will differ between two instances of the same program but the text will be the same.

Data contains initialized global variables, bss contains uninitialized global variables and must be initialized to zero (see lines 3091-1098), and the heap is the memory that malloc() allocates at run-time.

It's best to also keep the data+bss+heap and the stack separate - although Minix doesn't separate the two for the reasons given in section 4.7.3.  This means that if the heap or the stack grows too large, one can overwrite the other.  If the stack overwrites the heap and the overwritten data is not accessed immediately, identifying the problem is difficult.

On disk, the a_text field in the header holds the size of the text and the a_data field holds the size of the data.  If the kernel doesn't have separate text and total data segments, the variables a_data and a_text are combined into a_data and the variable a_text is set to zero (see lines 3069-3071).  Note that even though the values are changed in memory, they do not affect the values on disk. a_bss is the size of the bss.  a_total is the size of the data+bss+heap+stack (separate) or the text+data+bss+heap+stack (shared).  Unlike a_text, it doesn't need to be modified if the text and total data are shared. a_total determines the top of the stack (see lines 3075-3077) and is also used (with a_text) to determine the global variable _runsize (see lines 3127-3135) which is needed by boot.c in initialize().

Expand/Collapse Item3030            K_I386      =   0x0001  ! Call Minix in 386 mode
If the K_I386 flag is set for the kernel, this code must switch to protected mode.
Expand/Collapse Item3031            K_RET       =   0x0020  ! Returns to the monitor on reboot
Look at lines 3936 and 3942.  The minix kernel returns there on a halt or reboot if the K_RET is set for the kernel.  If the K_RET flag is not set, the system simply halts.

3032           K_INT86     =   0x0040  ! Requires generic INT support

Expand/Collapse Item3033            K_MEML      =   0x0080  ! Pass a list of free memory
The variable _mem (see line 3048) is used to pass this memory list.  The int 0x12 (see line 3141) and int 0x15 (see lines 3152 and 3157) bios calls are used to determine the low memory and high memory size.

3034

Expand/Collapse Item3035            DS_SELECTOR =      3*8  ! Kernel data selector
Expand/Collapse Item3036            ES_SELECTOR =      4*8  ! Flat 4 Gb
Expand/Collapse Item3037            SS_SELECTOR =      5*8  ! Monitor stack
Expand/Collapse Item3038            CS_SELECTOR =      6*8  ! Kernel code
Expand/Collapse Item3039            MCS_SELECTOR=      7*8  ! Monitor code
To support multiprocessing, the 80286 and up use global descriptor tables (GDT's).  p_gdt (line 4242) is the descriptor table.  Anything that is labeled UNSET must be filled in before the global descriptor table is loaded using the lgdt instruction (see line 4133).  These values are filled in on lines 3871-3897.

The following values are the offsets of the entries within the global descriptor table.  For example, since the entry for the kernel code is the 7th entry (see line 4267) and the size of each entry is 8 bytes, its offset is 6*8 (remember that the first entry has a 0 offset).  The MCS_SELECTOR is pushed onto the stack (if the K_RET flag is set for the kernel) before jumping to the kernel (look at lines 3918-3920) .  Also before the jump is made to the kernel, the ds and es registers are loaded with DS_SELECTOR and ES_SELECTOR, respectively.

3040

Expand/Collapse Item3041            ESC         =     0x1B  ! Escape character
0x1B is the ascii representation of ESC.

3042

Expand/Collapse Item3043    ! Imported variables and functions:
Memory for a variable can be allocated in only one file (i.e. the variable is "defined") but the variable must be declared as extern in every other file that accesses it.  To accomplish this, the macro EXTERN is #defined as the empty string in boot.c .  This prevents the EXTERN macro from being #defined as extern in boot.h when boot.h is #included in boot.c.  boot.h is also #included in bootimage.c.  Since EXTERN is not #defined (and is therefore undefined), EXTERN is replaced by extern in bootimage.c.  This mechanism ensures that memory for a variable is allocated only once.

A similar trick is used in the kernel.  Read the 5th paragraph of section 2.6.3 of Operating Systems for details.

Variables that are shared between assembler and C code are prefixed with an underscore ( _ ) in the assembler code but are not prefixed with an underscore in the C code.

Expand/Collapse Item3044    .extern _caddr, _daddr, _runsize, _edata, _end  ! Runtime environment
_caddr is the absolute address of the first byte of the text. _daddr is the absolute address of the first byte of the data. _runsize is the size of the entire executable (text+data+bss+heap+stack). I believe that _edata and _end are variables that are generated by the compiler. _edata is the offset address of the end of the data and _end is the offset address of the end of the bss.  These two variables are used on lines 3091-3098.  See the comment for line 3145 for further discussion of _edata and _end.
3045   .extern _device                                 ! BIOS device number
3046   .extern _rem_part                               ! To pass partition info
Expand/Collapse Item3047    .extern _k_flags                                ! Special kernel flags
_k_flags contains the K_I386 , K_RET, K_INT86, and K_MEML flags (lines 3030-3033).  _k_flags is set in bootimage.c.
3048   .extern _mem                                    ! Free memory list
3049
3050   .text
3051   begtext:
Expand/Collapse Item3052    .extern _boot, _printk                          ! Boot Minix, kernel printf
These functions are defined in boot.c. boot is called on line 3180.
3053
Expand/Collapse Item3054    ! Set segment registers and stack pointer using the programs own header!
Expand/Collapse Item3055    ! The header is either 32 bytes (short form) or 48 bytes (long form).  The
Expand/Collapse Item3056    ! bootblock will jump to address 0x10030 in both cases, calling one of the
Expand/Collapse Item3057    ! two jmpf instructions below.
3058
3059           jmpf    boot, LOADSEG+3 ! Set cs right (skipping long a.out header)
3060           .space  11              ! jmpf + 11 = 16 bytes
3061           jmpf    boot, LOADSEG+2 ! Set cs right (skipping short a.out header)
Expand/Collapse Item3062    boot:
Whether this code has a short header or a long header, the second instruction executed (after the first jump) is at address boot.

Before boot is called on line 3180, a few things are done.  (Don't confuse the two boot's; one's an address (line 3062) and the other's a function defined in boot.c (line 3180).)

Lines 3062-3080: The ds, ss, and sp registers are loaded.  The values loaded depend on whether this executable has a separate text and total data (A_SEP in a_flags is set) or this executable has a shared text and total data (A_SEP in a_flags is not set).

Lines 3092-3097:  Clear the bss.  The bss contains uninitialized global variables and needs to be zeroized.

Lines 3100-3135:  Initialize various global variables so that when boot (line 3180) is called, the C code can access their values.

Lines 3137-3177:  Initialize the array mem[].

Expand/Collapse Item3063            mov     ax, #LOADSEG
Expand/Collapse Item3064            mov     ds, ax          ! ds = header
What's the pound (#) sign all about?  The pound sign indicates that the value of LOADOFF is moved into the register rather than the contents of the memory location LOADOFF.

Why can't the instruction mov ds, #LOADSEG be used instead of using ax as an intermediate register?  The 80x86 processors forbids immediate data to segment register transfers.  (Immediate data is data that is within the instruction itself, as opposed to data that is at a memory location or data that is in a register.)  Memory to segment register transfers are also forbidden.  Only register to segment register transfers are allowed.  The one exception to this rule is the cs register.  The cs register is even more restrictive.  The only two instructions that can alter the cs register are jmpf (far jump) and return retf (far return) instructions.

3065
3066           movb    al, a_flags
Expand/Collapse Item3067            testb   al, #A_SEP      ! Separate I&D?
Expand/Collapse Item3068            jnz     sepID
testb sets the zero flag if A_SEP is not set in a_flags.  If the zero flag is not set (A_SEP is set), then jnz jumps to sepID.
Expand/Collapse Item3069    comID:  xor     ax, ax
This instruction zeroes the ax register (any number xor'ed with itself is zero).  This is a pretty common practice.  The instruction

mov ax, #0

is slower and is 3 bytes compared with xor's 2 bytes.

3070           xchg    ax, a_text      ! No text
3071           add     a_data, ax      ! Treat all text as data
3072   sepID:
3073           mov     ax, a_total     ! Total nontext memory usage

Expand/Collapse Item3074            and     ax, #0xFFFE     ! Round down to even
I'm not sure why we do this.  However, since the size of the stack is arbitrary and there should be plenty of room to spare, rounding down to an even value shouldn't be a problem.  The efficiency of transferring 2 bytes from an even memory address may be greater than transferring 2 bytes from an odd memory address.

3075           mov     a_total, ax     ! total - text = data + bss + heap + stack

Expand/Collapse Item3076            cli                     ! Ignore interrupts while stack in limbovv
Whenever a value is moved into the stack register (ss) or the stack pointer (sp), the interrupts must be first disabled.  The ss and sp registers hold the address to which an interrupt returns after its completion.  If the ss and sp register are in flux, one can't predict where the code will return.

Interrupts are disabled with the cli (clear interrupts) instruction and reenabled with the sti (set interrupts) instruction.

3077           mov     sp, ax          ! Set sp at the top of all that
3078
Expand/Collapse Item3079            mov     ax, a_text      ! Determine offset of ds above cs
Expand/Collapse Item3080            movb    cl, #4
Expand/Collapse Item3081            shr     ax, cl
Expand/Collapse Item3082            mov     cx, cs
Expand/Collapse Item3083            add     ax, cx
Expand/Collapse Item3084            mov     ds, ax          ! ds = cs + text / 16
Each segment register (cs , ds, es , ss,etc.) is internally appended with a 0x0 before being added to a non-segment register (like ip or ax ) to form an address.  For example, if the cs register holds the value 0x1000 and the ip register holds the value 0x1000, then together these registers point to address 0x11000.  So if we wish to add an offset (in bytes) to a segment register, we must first shift the offset 4 bits to the right (line 3081).
3085           mov     ss, ax
3086           sti                     ! Stack ok now
Expand/Collapse Item3087            push    es              ! Save es, we need it for the partition table
This value is popped into the upper 2 bytes of _rem_part on line 3105.
3088           mov     es, ax
3089           cld                     ! C compiler wants UP
3090
3091   ! Clear bss
3092           xor     ax, ax          ! Zero
Expand/Collapse Item3093            mov     di, #_edata     ! Start of bss is at end of data
Expand/Collapse Item3094            mov     cx, #_end       ! End of bss (begin of heap)
_edata and _end are variables that are set by the compiler.  _edata is the offset address of the end of the data and_end is the offset address of the end of the bss.

3095           sub     cx, di          ! Number of bss bytes
3096           shr     cx, #1          ! Number of words

Expand/Collapse Item3097            rep
Expand/Collapse Item3098            stos                    ! Clear bss
The instruction prefix rep repeats the instruction (in this case stos) cx times.  stos stores ax at the memory address es:di.  Since stos stores words and not bytes, cx must be shifted to the right by 1 (in other words, divided by 2).
3099
Expand/Collapse Item3100    ! Copy primary boot parameters to variables.  (Can do this now that bss is
Expand/Collapse Item3101    ! cleared and may be written into).
Since _device and _rem_part are uninitialized global variables, they are stored in the bss.

3102           xorb    dh, dh
3103           mov     device, dx     ! Boot device (probably 0x00 or 0x80)
3104           mov     _rem_part+0, si ! Remote partition table offset
3105           pop     _rem_part+2     ! and segment (saved es)
3106
3107   ! Remember the current video mode for restoration on exit.
3108           movb    ah, #0x0F       ! Get current video mode

Expand/Collapse Item3109            int     0x10
int 0x10,ah=0x0F returns the current video mode into al.  Some examples of return values are al=0x13 (VGA, 320x2100 resolution, 256 colors), al=0x12 (VGA, 640x480, 16), and al=0x0E (CGA, 640x240, 16).

I don't know what "blanking" is.  If you know, please submit a comment to the site which will be displayed below.

Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: Feb 01 2004 16:42:09 GMT
Subject:  'Blanking', what is?
Reponse: At line 3110 0x7F is binary 01111111 and with andb instruction we mask off bit 7 to the returned to al value for video mode after the interrupt. This bit if set leaves video buffer as-is and if zero clears the display when we set video mode (int 0x10 ah=0x0). When used with interrupt of line 3108 (get video mode) shows if the last mode set cleared or not the video buffer. Hence comes the term 'blanking'.

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


3110           andb    al, #0x7F       ! Mask off bit 7 (no blanking)
3111           movb    old_vid_mode, al
3112           movb    cur_vid_mode, al
3113
3114   ! Give C code access to the code segment, data segment and the size of this
3115   ! process.
3116           xor     ax, ax
3117           mov     dx, cs
Expand/Collapse Item3118            call    seg2abs
Line 3222 converts a segment:offset address in dx:ax to an absolute address in dx-ax. Note that the notation dx-ax does not mean dx minus ax It means that the lower 2 bytes are in ax and the upper 2 bytes are in dx.  This notation is used in other places in the code (for example, lines 3227-3243).
3119           mov     _caddr+0, ax
3120           mov     _caddr+2, dx
3121           xor     ax, ax
3122           mov     dx, ds
3123           call    seg2abs
3124           mov     _daddr+0, ax
3125           mov     _daddr+2, dx
3126           push    ds
3127           mov     ax, #LOADSEG
3128           mov     ds, ax          ! Back to the header once more
3129           mov     ax, a_total+0
3130           mov     dx, a_total+2   ! dx:ax = data + bss + heap + stack
Expand/Collapse Item3131            add     ax, a_text+0
Expand/Collapse Item3132            adc     dx, a_text+2    ! dx:ax = text + data + bss + heap + stack
If this executable has a separate text and total data segment, a_text must be added to a_total to get the total size of the executable.  If it has a shared text and total data segment, a_total is the size of the text and the total data.  However, a_text was set to zero on line 3070 and can be added anyway and it won't matter.
3133           pop     ds
3134           mov     _runsize+0, ax
3135           mov     _runsize+2, dx  ! 32 bit size of this process
3136
Expand/Collapse Item3137    ! Determine available memory as a list of (base,size) pairs as follows:
Expand/Collapse Item3138    ! mem[0] = low memory, mem[1] = memory between 1M and 16M, mem[2] = memory
Expand/Collapse Item3139    ! above 16M.  Last two coalesced into mem[1] if adjacent.

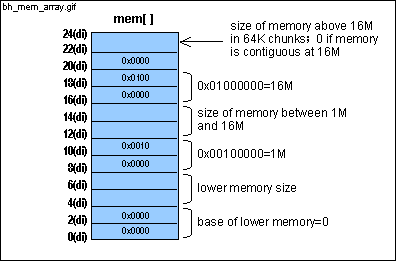

The memory (base, size) pairs will look something like this:
mem[0]=(0x00000000, size of low memory)
mem[1]=(0x00100000, size of memory between 1M and 16M)
mem[2]=(0x01000000, size of memory greater than 16M)

If the mem[1] and mem[2] memory areas are continugous, then mem[1] and mem[2] are combined.

Since mem[] is an uninitialized variable, it is found in the bss space, which was zeroized on lines 3091-1098.  The following instructions are not needed since these 4 bytes are already zero.

mov 0(di), #0
mov 2(di), #0

Also, since the lower 2 bytes of the base of both mem[1] and mem[2] are also zero, the following instructions are also not needed:

mov 8(di), #0
mov 16(di), #0

The lower 2 bytes of the lower memory size are stored in 4(di) and the upper 2 bytes are stored in 6(di) (lines 3443-3144).  Likewise, 12(di) and 14(di) hold the size of the memory between 1M and 16M.  20(di) and 22(di) hold the size of the memory above 16M.  Since int 0x15 , ax=0xE081 returns the number of 64K (not 1K) blocks of memory in bx (see line 3152), 20(di) will equal 0.

3140           mov     di, #_mem       ! di = memory list
3141           int     0x12            ! Returns low memory size (in K) in ax
Expand/Collapse Item3142            mul     c1024
c1024 is a memory address (see line 4207).  "c" stands for constant.  mul multiples ax by the operand (in this case the value at the address specified by the operand) and puts the lower 2 bytes of the result in ax and the upper 2 bytes in dx.
3143          mov     4(di), ax       ! mem[0].size = low memory size in bytes
3144           mov     6(di), dx
Expand/Collapse Item3145            call    _getprocessor
It's pretty obvious what _getprocessor does, but I can't find where it's defined.  It returns 86 into ax for an 8086, 286 for a 80286, 386 for a 80386 and so on.  It's possible that _getprocessor is a function that's supplied by the compiler (like I believe that _edata and _end are variables supplied by the compiler) but I'm not sure.  What leads me to believe that it's a function supplied by the compilier is that this code calls two other functions that are not defined in this file (boot is defined in boot.c and printk is declared in minix/minlib.h ,which is #included in boot.c, and is part of the standard library) and both of these are declared as .extern on line 3052.  _getprocessor, _edata, and _end are neither defined nor declared in this file, suggesting that they are special in some way.  If you have any answers to this, please send an e-mail to feedback@swartzbaugh.net or submit a comment to the site which will be displayed below..
Name: Christos KarayiannisEmail:  christos@nospamkar.forthnet.gr (remove "nospam") Warning: date() expects parameter 2 to be long, string given in /home/content/34/4215634/html/minix/boot/ssi/dateDiffLines.php on line 7
strand>Date: Jul 14 2003 15:02:52 GMT
Subject:  no subject
Reponse: _getprocessor is not defined by the compiler but instead at /src/lib/i386/misc/getprocessor.s,

===========================
here follows getprocessor.s
===========================

! getprocessor() - determine processor type Author: Kees J. Bot
! 26 Jan 1994

.sect .text; .sect .rom; .sect .data; .sect .bss
.sect .text

! int getprocessor(void);
! Return 386, 486, 586, ...

.define _getprocessor

_getprocessor:
push ebp
mov ebp, esp
and esp, 0xFFFFFFFC ! Align stack to avoid AC fault
mov ecx, 0x00040000 ! Try to flip the AC bit introduced on the 486
call flip
mov eax, 386 ! 386 if it didn't react to "flipping"
jz gotprocessor
mov ecx, 0x00200000 ! Try to flip the ID bit introduced on the 586
call flip
mov eax, 486 ! 486 if it didn't react
jz gotprocessor
pushf
pusha ! Save the world
mov eax, 1
.data1 0x0F, 0xA2 ! CPUID instruction tells the processor type
andb ah, 0x0F ! Extract the family (5, 6, ...)
movzxb eax, ah
imul eax, 100 ! 500, 600, ...
add eax, 86 ! 586, 686, ...
mov 7*4(esp), eax ! Pass eax through
popa
popf
gotprocessor:
leave
ret

flip:
pushf ! Push eflags
pop eax ! eax = eflags
mov edx, eax ! Save original eflags
xor eax, ecx ! Flip the bit to test
push eax ! Push modified eflags value
popf ! Load modified eflags register
pushf
pop eax ! Get it again
push edx
popf ! Restore original eflags register
xor eax, edx ! See if the bit changed
test eax, ecx
ret

Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: Feb 01 2004 16:48:06 GMT
Subject: Re: no subject
Reponse: a nice site to look for variable names in the Minix tree is http://minix.technoir.org/search.html
where if we would like to find e.g. _getprocessor we would make a search with keyword getprocessor
Add something below Christos Basil Karayiannis - Karditsa GR's comment...
Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: Apr 30 2004 11:32:06 GMT
Subject: Re: no subject
Reponse: Another url for Minix 'identifier search' is
http://www.cis.ufl.edu/class/cop4600/cgi-bin/lxr/http/ident.cgi
Add something below Christos Basil Karayiannis - Karditsa GR's comment...
Name: Wei HuEmail:  Date: Aug 05 2006 01:06:22 GMT
Subject: Re: no subject
Reponse: If you take a look at src/boot/Makefile, the boot program is linked with a library specified by -lsys. That's how getprocessor gets introduced.
Add something below Wei Hu's comment...
Name: JamesEmail:  Date: Dec 26 2008 01:38:31 GMT
Subject: Re: no subject
Reponse: but how does the makefile the trueth? would you please give more explanation?
*******************************************
# Makefile for the boot monitor package.

SYS = ..

CC = exec cc
CC86 = exec cc -mi86 -Was-ncc
CFLAGS = -I$(SYS)
LIBS = -lsys
LD = $(CC) -s -.o
LD86 = $(CC86) -.o
BIN = /usr/bin
MDEC = /usr/mdec
........
*********************************

 Continue discussion.


3146           cmp     ax, #286        ! Only 286s and above have extended memory
3147           jb      no_ext
3148           cmp     ax, #486        ! Assume 486s were the first to have >64M
3149           jb      small_ext       ! (It helps to be paranoid when using the BIOS)
3150   big_ext:
3151           mov     ax, #0xE801     ! Code for get memory size for >64M
Expand/Collapse Item3152            int     0x15            ! ax = mem at 1M per 1K, bx = mem at 16M per 64K
int 0x15 sets the carry flag if the value in ax (or ah) is not a supported input.
3153           jnc     got_ext
3154   small_ext:
3155           movb    ah, #0x88       ! Code for get extended memory size
3156           clc                     ! Carry will stay clear if call exists
3157           int     0x15            ! Returns size (in K) in ax for AT's
3158           jc      no_ext
3159           test    ax, ax          ! An AT with no extended memory?
3160           jz      no_ext
3161           xor     bx, bx          ! bx = mem above 16M per 64K = 0
3162   got_ext:
3163           mov     cx, ax          ! cx = copy of ext mem at 1M
3164           mov     10(di), #0x0010 ! mem[1].base = 0x00100000 (1M)
3165           mul     c1024
3166           mov     12(di), ax      ! mem[1].size = "ext mem at 1M" * 1024
3167           mov     14(di), dx
Expand/Collapse Item3168            test    bx, bx
If bx has any value other than 0, it was put there by int 0x15 on line 3152.

3169           jz      no_ext          ! No more ext mem above 16M?

Expand/Collapse Item3170            cmp     cx, #15*1024    ! Chunks adjacent? (precisely 15M at 1M?)
Expand/Collapse Item3171            je      adj_ext
If there are 15M between 1M and 16M, then the memory between 1M and 16M and the memory above 16M is contiguous.  If the memory is contiguous, the two sizes are combined into mem[1] by jumping to adj_ext.
3172           mov     18(di), #0x0100 ! mem[2].base = 0x01000000 (16M)
3173           mov     22(di), bx      ! mem[2].size = "ext mem at 16M" * 64K
3174           jmp     no_ext
3175   adj_ext:
3176           add     14(di), bx      ! Add ext mem above 16M to mem below 16M
3177   no_ext:
3178
Expand/Collapse Item3179    ! Time to switch to a higher level language (not much higher)
Now that we've taken care of a little housekeeping, we can call boot.
3180           call    _boot
Expand/Collapse Item3181    ! Time to switch to a higher level language (not much higher)
Until bootstrap (line 3786), the code is a little tedious.  Functions are defined that are called by the secondary boot's C code.  The one thing that makes it interesting is that it gives a little insight into when you can use C and when you have to use assembler.  Most of the assembler functions make a lot of calls to the bios.
3182   ! void ..exit(int status)
3183   !       Exit the monitor by rebooting the system.
Expand/Collapse Item3184    .define _exit, __exit, ___exit          ! Make various compilers happy
Expand/Collapse Item3185    _exit:
Expand/Collapse Item3186    __exit:
Expand/Collapse Item3187    ___exit:
_exit, __exit, and ___exit are all the same addresses.  I am not entirely sure why we need to match up with specific compilers, but I'm willing to make a guess.  My guess is that every compiler has a built-in exit function and in order to override the compiler default,  you have to supply your own exit function and give the function the appropriate compiler-specific name.  If anyone knows for sure, please submit a comment to the site which will be displayed below.

If the _exit function is called, then for one reason or another, the boot code has decided to exit rather than jump to the kernel.  If no error occured (status=0), reboot.  Otherwise, wait for a key to be pressed and then reboot.

Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: May 01 2004 19:58:31 GMT
Subject:  _exit, __exit, ___exit
Reponse: exit() is a high level function which among other it calls _exit() which is a user visible system call. _exit() finally calls __exit() the true system call in the library. Routines in assembly are prefixed with an underscore, thus exit() is turned to _exit, _exit() to __exit and __exit() to ___exit.

All three routines are uniformly defined for the Minix Monitor. If a library function calls one of those 'exit' in the Monitor, it ends with the way specified in boothead.s instead of following the exit process, that the user programs take.

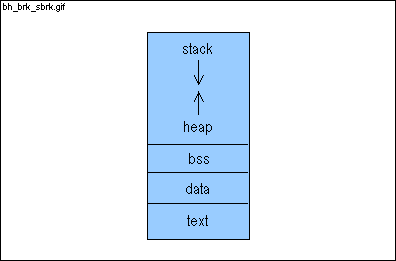

The same happens also with _brk, __brk, _sbrk, __sbrk.

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


Expand/Collapse Item3188            mov     bx, sp
Expand/Collapse Item3189            cmp     2(bx), #0               ! Good exit status?

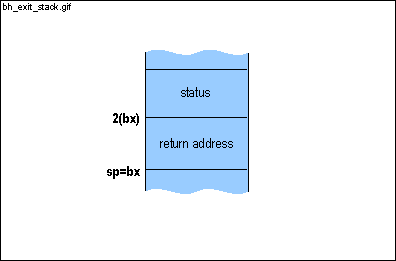

This is something you'll see a lot so make sure you understand it.  When C code calls a function, it pushes its arguments onto the stack.  The C code pushes its last argument first and the first argument last (there's only one argument for the exit function - status).  After finishing with the arguments, the return address is pushed (since the function is exit and the system is rebooted, this value is never used but it's pushed onto the stack anyway).  The stack at this moment looks like this:

3190           jz      reboot
Expand/Collapse Item3191    quit:   mov     ax, #any_key
Expand/Collapse Item3192            push    ax
Expand/Collapse Item3193            call    _printk
We can now see an example of an assembler function calling a C function that requires parameters.  The printk() function (which has the same syntax as printf()) is very flexible - one way that it can be called is by passing it a pointer to a string as an argument.  In order to pass the C function a pointer as an argument, the address of the string (in this case, any_key) is pushed onto the stack (line 3192) before making the call (line 3193).  Only a single argument is passed to the C function, but if more than one argument were passed, the last argument would be pushed first and the first argument would be pushed last.
3194           xorb    ah, ah                  ! Read character from keyboard
Expand/Collapse Item3195            int     0x16
int 0x16, ah=0 waits for a key to be pressed and then puts the ascii code of the pressed key in al. Since we don't care what key is pressed, the contents of al is never examined.
Expand/Collapse Item3196    reboot: call    restore_video
I'm not sure why we need to restore the old video settings before rebooting, but I guess it can't hurt.  If you know why we do this, please submit a comment to the site which will be displayed below.
Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: May 05 2004 12:24:19 GMT
Subject:  int 0x19
Reponse: int 0x19 does not reboot the system but rather works as a boot loader. It is the BIOS interrupt that loads the bootstrap loader program from the hard disk or the diskette at 0:7C00h and begins execution. In this procedure BIOS is bypassed so all BIOS values are left as they were and are not set back to the default (this reset could take place with a 'cold' boot). For that reason the initial video settings should be restored in case they were previously changed for example to fit better for Minix and the system then is to be loaded again, probably with another OS.

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


3197           int     0x19                    ! Reboot the system
Expand/Collapse Item3198    .data
Variables can be interspersed anywhere in the code with the .data declaration.  Since the address any_key is used on line 3191, it's convenient to place the .data declaration here.

3199   any_key:
3200           .ascii  "\nHit any key to reboot\n\0"
3201   .text
3202

Expand/Collapse Item3203    ! u32_t mon2abs(void *ptr)
Expand/Collapse Item3204    !       Address in monitor data to absolute address.
mon2abs converts a 2-byte offset address (using ds as the segment address) to a 4-byte absolute address.  ptr is this 2-byte offset.  vec2abs converts a 4-byte segment:offset address to a 4-byte absolute address.  vec points to this 4-byte address.  (Note that a segment:offset address is called a vector.)

Let's look in boot.c where both of these functions are called.  lowsec holds a 2-byte integer while rem_part holds a 2-byte offset address in its lower 2 bytes and a 2-byte segment address in its upper 2 bytes (see lines 3104-3105).  mon2abs converts the 2-byte offset address of lowsec (using ds as its 2-byte segment address) to a 4-byte absolute address and vec2abs converts the 4-byte segment:offset address found at rem_part to a 4-byte absolute address.  The figure below shows the relationship between the stack of vec2abs and the variable rem_part.

The comment for vec2abs is a little misleading.  As the above example shows, vec2abs can be used for conversions of segment:offset vectors that are not interrupt vectors.  This is the only place in the boot sequence where vec2abs is called.

3205   .define _mon2abs
3206   _mon2abs:
3207           mov     bx, sp
3208           mov     ax, 2(bx)       ! ptr
3209           mov     dx, ds          ! Monitor data segment
3210           jmp     seg2abs
3211
Expand/Collapse Item3212    ! u32_t vec2abs(vector *vec)
Expand/Collapse Item3213    !       8086 interrupt vector to absolute address.

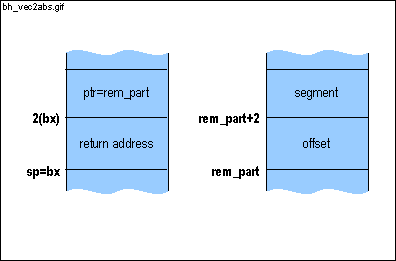

As discussed in the comments for 3203-3204, vec2abs converts a 4-byte segment:offset address to a 4-byte absolute address.  vec points to this 4-byte address.

3214   .define _vec2abs
3215   _vec2abs:
3216           mov     bx, sp
3217           mov     bx, 2(bx)
3218           mov     ax, (bx)
3219           mov     dx, 2(bx)       ! dx:ax vector
3220           !jmp    seg2abs         ! Translate
3221

Expand/Collapse Item3222  seg2abs:                        ! Translate dx:ax to the 32 bit address dx-ax
The segment address must be shifted to the left 4 bits before being added to an offset address.  ch is used to store intermediate values.  Note that dx-ax does not mean dx minus ax.  It represents a 4-byte value with the upper 2 bytes in dx and the lower 2 bytes in ax.  To make sure that you understand the steps below, convert a segment:offset address (for example 0x0100:0x0116 = dx:ax) to its absolute address (0x00001116 = dx-ax) using the instructions below.
3223           push    cx
3224           movb    ch, dh
3225           movb    cl, #4
3226           shl     dx, cl
3227           shrb    ch, cl          ! ch-dx = dx << 4
3228           add     ax, dx
3229           adcb    ch, #0          ! ch-ax = ch-dx + ax
3230           movb    dl, ch
3231           xorb    dh, dh          ! dx-ax = ch-ax
3232           pop     cx
3233           ret
3234
Expand/Collapse Item3235  abs2seg:                        ! Translate the 32 bit address dx-ax to dx:ax
This is the reverse of below.  An absolute value in dx-ax is converted to a segment:offset address in dx:ax.  This operation would convert dx-ax = 0x00001116 to dx:ax = 0x0111:0x0006.  Note that the 2 segment:offset addresses 0x0100:0x0116 and 0x0111:0x0006 are the same absolute address.
3236           push    cx
3237           movb    ch, dl
3238           mov     dx, ax          ! ch-dx = dx-ax
3239           and     ax, #0x000F     ! Offset in ax
3240           movb    cl, #4
3241           shr     dx, cl
3242           shlb    ch, cl
3243           orb     dh, ch          ! dx = ch-dx >> 4
3244           pop     cx
3245           ret
3246
Expand/Collapse Item3247    ! void raw_copy(u32_t dstaddr, u32_t srcaddr, u32_t count)
Expand/Collapse Item3248    !       Copy count bytes from srcaddr to dstaddr.  Don't do overlaps.
Expand/Collapse Item3249    !       Also handles copying words to or from extended memory.
The most difficult part of this function is dealing with extended memory.

If the source or destination address is greater than 1MB, extended memory must be accessed using the int 0x15, ah=0x87 bios call.

Keep in mind that the system is still in real mode.  When (and if) the system is switched to protected mode, this problem goes away.  In protected mode, 4GB of memory can be accessed.

If the absolute address range 0x1000-0x2000 were copied to location 0x1800-0x2800, the source range and the destination range would overlap.  Overlaps are not allowed.

After line 3253, the stack will look like this:

3250   .define _raw_copy
3251   _raw_copy:
3252           push    bp
3253           mov     bp, sp
3254           push    si
3255           push    di              ! Save C variable registers
3256   copy:
3257           cmp     14(bp), #0
3258           jnz     bigcopy
3259           mov     cx, 12(bp)
3260           jcxz    copydone        ! Count is zero, end copy
3261           cmp     cx, #0xFFF0
3262           jb      smallcopy
3263   bigcopy:mov     cx, #0xFFF0     ! Don't copy more than about 64K at once
3264   smallcopy:
3265           push    cx              ! Save copying count
3266           mov     ax, 4(bp)
3267           mov     dx, 6(bp)

Expand/Collapse Item3268            cmp     dx, #0x0010     ! Copy to extended memory?
Expand/Collapse Item3269            jae     ext_copy
Expand/Collapse Item3270            cmp     10(bp), #0x0010 ! Copy from extended memory?
Expand/Collapse Item3271            jae     ext_copy
If either the source or destination address is greater than 0x00100000 (1MB), then the int 0x15, ah=0x87 bios call must be used.
Expand/Collapse Item3272            call    abs2seg
In order to use the rep movs instruction, the source and destination addresses must be converted from absolute addresses to segment:offset addresses. abs2seg converts the absolute address dx-ax to the segment:offset address dx:ax.  (Note that dx-ax does not mean dx minus ax.  It represents a 4-byte value whose upper 2 bytes are in dx and whose lower 2 bytes are in ax.)
3273           mov     di, ax
3274           mov     es, dx          ! es:di = dstaddr
3275           mov     ax, 8(bp)
3276           mov     dx, 10(bp)
3277           call    abs2seg
3278           mov     si, ax
3279           mov     ds, dx          ! ds:si = srcaddr
Expand/Collapse Item3280            shr     cx, #1          ! Words to move
Expand/Collapse Item3281            rep
rep movs copies cx words from ds:si to es:di.  Since cx holds the number of bytes and words being copied, cx must be shifted to the right 1 bit (this divides cx by 2).
3282           movs                    ! Do the word copy
Expand/Collapse Item3283            adc     cx, cx          ! One more byte?
Expand/Collapse Item3284            rep
Expand/Collapse Item3285            movsb                   ! Do the byte copy
The shr instruction on line 3280 shifted the right-most bit into the carry flag.  If cx were previously odd, then the carry flag will be set and if cx were previously even, the carry flag will not be set.  On line 3283, cx (which was decremented to 0 by the rep movs instruction) is added to itself (for a total of 0) and then the carry flag is added.  So cx will be 1 if it had been odd before the shr instruction and it will be 0 if it been even before the shr instruction.

Either 1 byte or 0 bytes is then copied from ds:si to es:si.

3286           mov     ax, ss          ! Restore ds and es from the remaining ss
3287           mov     ds, ax
3288           mov     es, ax
3289           jmp     copyadjust
Expand/Collapse Item3290    ext_copy:
Look at line 4214.  The UNSET's for both x_src_desc and x_dst_desc must be modified with the lowest addresses (bases) of the source and destination addresses before making the int 0x15, ah=0x87 bios call.  None of the other UNSET's in the table matters here.
3291           mov     x_dst_desc+2, ax
3292           movb    x_dst_desc+4, dl ! Set base of destination segment
3293           mov     ax, 8(bp)
3294           mov     dx, 10(bp)
3295           mov     x_src_desc+2, ax
3296           movb    x_src_desc+4, dl ! Set base of source segment
3297           mov     si, #x_gdt      ! es:si = global descriptor table
3298           shr     cx, #1          ! Words to move
3299           movb    ah, #0x87       ! Code for extended memory move
Expand/Collapse Item3300            int     0x15
For the int 0x15, ah=0x87 bios call, es:si points to the extended move table (line 4214) and cx holds the number of words to copy.
Expand/Collapse Item3301    copyadjust:
The stack contents are modified in order to advance the current source and destination addresses and keep track of how many more bytes must be copied (see line 3263).
3302           pop     cx              ! Restore count
3303           add     4(bp), cx
3304           adc     6(bp), #0       ! srcaddr += copycount
3305           add     8(bp), cx
3306           adc     10(bp), #0      ! dstaddr += copycount
3307           sub     12(bp), cx
3308           sbb     14(bp), #0      ! count -= copycount
3309           jmp     copy            ! and repeat
Expand/Collapse Item3301    copydone:
At this point, the copying is complete.  bp, di, and si were pushed onto the stack (lines 3252, 3254, and 3255) and must be popped before returning.
3311           pop     di
3312           pop     si              ! Restore C variable registers
3313           pop     bp
3314           ret
3315
Expand/Collapse Item3316    ! u16_t get_word(u32_t addr);
Expand/Collapse Item3317    ! void put_word(u32_t addr, u16_t word);
Expand/Collapse Item3318    !       Read or write a 16 bits word at an arbitrary location.
u16_t get_word(u32_t addr) returns the 2 byte (16 bit) value at absolute memory address addr.
3319   .define _get_word, _put_word
3320   _get_word:
3321           mov     bx, sp
3322           call    gp_getaddr
3323           mov     ax, (bx)        ! Word to get from addr
3324           jmp     gp_ret
3325   _put_word:
3326           mov     bx, sp
Expand/Collapse Item3327            push    6(bx)           ! Word to store at addr
Expand/Collapse Item3328            call    gp_getaddr
Expand/Collapse Item3329            pop     (bx)            ! Store the word
The value pushed on line 3327 is the same value popped on line 3329.  This value is word.  It is pushed to the location specified by ds:bx, which was set on lines 3335-3336.
3330           jmp     gp_ret
Expand/Collapse Item3331  gp_getaddr:
"gp" stands for get/put.  gp_getaddr converts addr (found on the stack) to a segment:offset address in ds:bx.
3332           mov     ax, 2(bx)
3333           mov     dx, 4(bx)
3334           call    abs2seg
3335           mov     bx, ax
3336           mov     ds, dx          ! ds:bx = addr
3337           ret
3338   gp_ret:
3339           push    es
Expand/Collapse Item3340            pop     ds              ! Restore ds
The value of ds was changed on line 3336.  es and ds (before line 3336) were the same value.
3341           ret
3342
Expand/Collapse Item3343    ! void relocate(void);
Expand/Collapse Item3344    !       After the program has copied itself to a safer place, it needs to change
Expand/Collapse Item3345    !       the segment registers.  Caddr has already been set to the new location.
It's slightly more complicated than this, but in the initialize() function in boot.c the secondary boot (this program) is copied to the end of the available low memory and a jump is made to it.

The return address (which is only an offset) of this function is popped into bx to start this function.  The last instruction before the final instruction, retf, is to push this offset on the stack.  The returning offset will be the same but the segment will be different (the new segment is pushed on the stack on line 3364).

3346   .define _relocate
3347   _relocate:
3348           pop     bx              ! Return address
3349           mov     ax, _caddr+0
3350           mov     dx, _caddr+2
3351           call    abs2seg
Expand/Collapse Item3352            mov     cx, dx          ! cx = new code segment
Expand/Collapse Item3353            mov     ax, cs          ! Old code segment
Expand/Collapse Item3354            sub     ax, cx          ! ax = -(new - old) = -Moving offset
Expand/Collapse Item3355            mov     dx, ds
Expand/Collapse Item3356            sub     dx, ax
The difference between the new code segment (cs) and the old code segment will be the same as the difference between the new data segment (ds) and the old data segment.
Expand/Collapse Item3357            mov     ds, dx          ! ds += (new - old)
Expand/Collapse Item3358            mov     es, dx
Expand/Collapse Item3359            mov     ss, dx
ds, es, and ss are set to the new value using the mov instruction.  The code segment (cs) and the instruction pointer (ip) can be changed by a jump instruction or a retf instruction but not by a mov instruction.
3360           xor     ax, ax
3361           call    seg2abs
3362           mov     _daddr+0, ax
3363           mov     _daddr+2, dx    ! New data address
3364           push    cx              ! New text segment
3365           push    bx              ! Return offset of this function
3366           retf                    ! Relocate
3367
Expand/Collapse Item3368    ! void *brk(void *addr)
Expand/Collapse Item3369    ! void *sbrk(size_t incr)
Expand/Collapse Item3370    !       Cannot fail implementations of brk(2) and sbrk(3), so we can use
Expand/Collapse Item3371    !       malloc(3).  They reboot on stack collision instead of returning -1.
Neither brk nor sbrk is found in boot.c, bootimage.c, or rawfs.c.  On the other hand, in boot.c and bootimage.c we call malloc().  I believe that malloc() calls this function, brk or sbrk, to determine if there's enough room to allocate the requested space on the heap.  Remember that the stack and the heap can collide with each other, as discussed in section 4.7.3 of Operating Systems .  Here's a simple figure of the memory layout.

If you can shed any light on the brk and sbrk calls, please submit a comment to the site which will be displayed below.

brk specifies the address on the heap (addr) to which malloc() wishes to allocate.  sbrk specifies the incremental space on the heap (incr) that malloc() wishes to allocate.

Name: Wei HuEmail:  Date: Aug 05 2006 01:47:25 GMT
Subject:  brk and malloc
Reponse: Since the boot loader runs barely on the hardware, no libc functions or system calls are available. Although printf and malloc are used, they are actually library functions defined in libsys.a. malloc and printf are defined in src/lib/sysutil/kmalloc.c and src/lib/sysutil/kprintf respectively.

malloc further relies on brk defined in boothead.s

Respond to Wei Hu's comment.


3372   .data
3373           .align  2
Expand/Collapse Item3374    break:  .data2  _end            ! A fake heap pointer
This is the top of the heap.  As discussed in the comments on 3044, _end is the initial top of the heap and is supplied by the compiler.  This value is modified on line 3387.
3375   .text
3376   .define _brk, __brk, _sbrk, __sbrk
3377   _brk:
3378   __brk:                          ! __brk is for the standard C compiler
3379           xor     ax, ax
3380           jmp     sbrk            ! break= 0; return sbrk(addr);
3381   _sbrk:
3382   __sbrk:
3383           mov     ax, break       ! ax= current break
3384   sbrk:   push    ax              ! save it as future return value
Expand/Collapse Item3385            mov     bx, sp          ! Stack is now: (retval, retaddr, incr, ...)
Expand/Collapse Item3386            add     ax, 4(bx)       ! ax= break + increment
Expand/Collapse Item3387            mov     break, ax       ! Set new break
If brk was called, the stack will be: (retval, retaddr, addr, ...)  Line 3386 either adds the value at address break and incr (for sbrk) or adds the value of addr and 0 (for brk).  Either way, the new top of the heap is stored at address break on line 3387.
Expand/Collapse Item3388            lea     dx, -1024(bx)   ! sp minus a bit of breathing space
The lea instruction loads a 16-bit register (in this case, dx) with the offset address of the data specified by the second operand (in this case, sp - 1024; sp=bx, see line 3385).  The lea instruction and the mov instruction are similar but not the same.  The mov instruction would have loaded dx with the data specified by the second operand, not the offset address of the data specified.
Expand/Collapse Item3389            cmp     dx, ax          ! Compare with the new break
If 1K (1024) doesn't separate the stack from the new top of the heap, there are major problems and the system is rebooted.  If less than 4K (but greater than 1K) separate the two, a warning is issued.
3390           jb      heaperr         ! Suffocating noises
3391           lea     dx, -4096(bx)   ! A warning when heap+stack goes < 4K
3392           cmp     dx, ax
3393           jae     plenty          ! No reason to complain
3394           mov     ax, #memwarn
3395           push    ax
3396           call    _printk         ! Warn about memory running low
3397           pop     ax
Expand/Collapse Item3398            movb    memwarn, #0     ! No more warnings
The user is warned once but not twice.
3399   plenty: pop     ax              ! Return old break (0 for brk)
3400           ret
3401   heaperr:mov     ax, #chmem
3402           push    ax
3403           mov     ax, #nomem
3404           push    ax
3405           call    _printk
3406           jmp     quit
3407 .data
Expand/Collapse Item3408    nomem:  .ascii  "\nOut of%s\0"
This call would be written in C as:

printk("\nOut of%s", " memory, use chmem to increase the heap\n\0");

The "%s" is replaced by the second string.

chmem is a utility program that changes the size of the stack.  It does this by altering the a_total field in the executable's header (see comment for line 3029).

3409   memwarn:.ascii  "\nLow on"
3410   chmem:  .ascii  " memory, use chmem to increase the heap\n\0"
3411   .text
3412
Expand/Collapse Item3413    ! int dev_open(void);
Expand/Collapse Item3414    !       Given the device "_device" figure out if it exists and what its number
Expand/Collapse Item3415    !       of heads and sectors may be.  Return the BIOS error code on error,
Expand/Collapse Item3416    !       otherwise 0.

dev_open() determines the number of heads and sectors of the device being booted and sets sectors (sectors/track - line 4279) and secspcyl (sectors/cylinder - line 4280) using these values.  dev_open() is called from the initialize() function in boot.c and it's also called from boot.c in the event that the user decides to boot another device.

As usual, the greatest difficulty arises if the device is a floppy drive.  If _device is a floppy, an attempt is made to read the first sector to make sure the drive is properly functioning.  If the drive is properly functioning, an attempt is made to read the 18th sector of the first track, then the 15th sector of the first track, and finally the 9th sector of the first track (see line 3483).  If the attempt to read the 18th sector of the first track is successful, then there are 18 sectors on a track and only a 1.44M floppy has 18 sectors on a single track.  If the 18th sector can't be read but the 15th sector can be read, we know we have a 1.2M floppy and if only the 9th sector can be read, we know we have a 720K floppy.

3417   .define _dev_open
3418   _dev_open:
3419           push    es
3420           push    di              ! Save registers used by BIOS calls
3421           movb    dl, _device     ! The default device
3422           cmpb    dl, #0x80       ! Floppy < 0x80, winchester >= 0x80
3423           jae     winchester
3424   floppy:
3425           mov     di, #3          ! Three tries to init drive by reading sector 0
3426   finit0: xor     ax, ax
3427           mov     es, ax
3428           mov     bx, #BUFFER     ! es:bx = scratch buffer
3429           mov     ax, #0x0201     ! Read sector, #sectors = 1
3430           mov     cx, #0x0001     ! Track 0, first sector
3431           xorb    dh, dh          ! Drive dl, head 0
Expand/Collapse Item3432            int     0x13
int 0x13, ah=0x02 copies sectors from a hard drive or floppy (specified by dl) to memory.  al specifies how many sectors to copy, bits 0-5 of cl specify the sector number, dh specifies the head number and ch specifies the low 8 bits of the cylinder number and bits 6-7 of cl specify the high bits of the cylinder number.  es:bx specifies where in memory we want to load the sectors.  If the int 0x13, ah=0x02 call fails, the carry (C) flag is set.  int 0x13, ah=0x02 returns 0 in ah if successful and an error code in ah if unsuccessful.

If the carry flag is not set and everything worked, the jnc instruction jumps to memory location finit0ok.  The data that is copied to memory is not examined.  We are only concerned with whether we are able to perform the copying operation.

3433           jnc     finit0ok        ! Sector 0 read ok?
Expand/Collapse Item3434            cmpb    ah, #0x80       ! Disk timed out?  (Floppy drive empty)
A return value of 0x80 in ah means that the floppy drive is empty.  A jump to geoerr (line 3479) is made if that's the case.
3435           je      geoerr
Expand/Collapse Item3436            dec     di
The drive (line 3439) is reset two times and an attempt to read the first sector of the floppy is made again before jumping to geoerr.
3437           jz      geoerr
3438           xorb    ah, ah          ! Reset drive
Expand/Collapse Item3439            int     0x13
int 0x13, ah=0x00 resets the drive.
3440           jc      geoerr
3441           jmp     finit0          ! Retry once more, it may need to spin up
3442   finit0ok:
Expand/Collapse Item3443            mov     di, #seclist    ! List of per floppy type sectors/track
An attempt is first made to read sector 18.  If that doesn't work, di (line 3458) is decremented to point to 15.  If that doesn't work, di is decremented again to point to 9.
3444   flast:  movb    cl, (di)        ! Sectors per track to test
3445           cmpb    cl, #9          ! No need to do the last 720K/360K test
3446           je      ftestok
3447           xor     ax, ax
3448           mov     es, ax
3449           mov     bx, #BUFFER     ! es:bx = scratch buffer
3450           mov     ax, #0x0201     ! Read sector, #sectors = 1
3451           xorb    ch, ch          ! Track 0, last sector
3452           xorb    dh, dh          ! Drive dl, head 0
Expand/Collapse Item3453            int     0x13
int 0x13, ah=0x02 copies sectors from a hard drive or floppy (specified by dl) to memory.  al specifies how many sectors to copy, bits 0-5 of cl specify the sector number, dh specifies the head number and ch specifies the low 8 bits of the cylinder number and bits 6-7 of cl specify the high bits of the cylinder number.  es:bx specifies where in memory we want to load the sectors.  If the int 0x13, ah=0x02 call fails, the carry (C) flag is set.  int 0x13, ah=0x02 returns 0 in ah if successful and an error code in ah if unsuccessful.

Again, we won't look at the data that we copy to memory.  We are only concerned with whether we are able to perform the copying operation.

3454           jnc     ftestok         ! Sector cl read ok?
3455           xorb    ah, ah          ! Reset drive
3456           int     0x13
3457           jc      geoerr
3458           inc     di              ! Try next sec/track number
3459           jmp     flast
3460   ftestok:
Expand/Collapse Item3461            movb    dh, #2          ! Floppies have two sides
In other words, floppies have two heads.
3462           jmp     geoboth
3463   winchester:
3464           movb    ah, #0x08       ! Code for drive parameters
Expand/Collapse Item3465            int     0x13            ! dl still contains drive
int 0x13, ah=0x08 returns the device geometry of the drive specified by dldl is 0x80 for the first drive, 0x81 for the second, 0x82 for the third and 0x83 for the fourth.  The call returns the maximum sector number in bits 0-6 of cl and the maximum head number in dh.  Adding to the confusion, the value that int 0x13, ah=0x08 returns for the maximum head number has a 0-origin.  This means that if int 0x13, ah=0x08 returns a 15 for the maximum head number, there are actually 16 heads.  This is why dh is incremented on line 3468.
3466           jc      geoerr          ! No such drive?
3467           andb    cl, #0x3F       ! cl = max sector number (1-origin)
3468           incb    dh              ! dh = 1 + max head number (0-origin)
Expand/Collapse Item3469    geoboth:
At this point, cl holds the number of sectors per track and dh holds the number of heads.
3470           movb    sectors, cl     ! Sectors per track
3471           movb    al, cl          ! al = sectors per track
Expand/Collapse Item3472            mulb    dh              ! ax = heads * sectors
mulb multiples al by the operand (in this case dh) and places the result in ax.
3473           mov     secspcyl, ax    ! Sectors per cylinder = heads * sectors
3474           xor     ax, ax          ! Code for success
Expand/Collapse Item3475    geodone:
es and di were saved on lines 3419-3420 by pushing them on the stack.  Now they need to be popped back.
3476           pop     di
3477           pop     es              ! Restore di and es registers
3478           ret
3479   geoerr: movb    al, ah          ! ax = BIOS error code
3480           xorb    ah, ah
3481           jmp     geodone
3482 .data
3483   seclist:
3484           .data1  18, 15, 9       ! 1.44M, 1.2M, and 360K/720K floppy sec/track
3485   .text
3486
3487   ! int dev_close(void);
3488   !       Close the current device.  Under the BIOS this does nothing.
3489   .define _dev_close
3490   _dev_close:
3491           xor     ax, ax
3492           ret
3493
Expand/Collapse Item3494    ! int dev_boundary(u32_t sector);
Expand/Collapse Item3495    !       True if a sector is on a boundary, i.e. sector % sectors == 0.
Expand/Collapse Item3496    .define _dev_boundary
Expand/Collapse Item3497    _dev_boundary:
dev_boundary() is called from bootimage.c.  Since it is often the case that several consecutive sectors are read, the array buf is used as a buffer to hold consecutive sectors.  get_sector() reads the requested sector (vsec) plus successive sectors but the successive sectors must be on the same track.  In other words, get_sector() does not cross track boundaries.

The div instruction divides dx-ax by the operand (in our example, the value at address sectors) and puts the quotient into ax and the remainder into dx.

Two div instructions are used in this function.  It's unclear to me why they don't load the top 2 bytes of sector into dx , the bottom 2 bytes into ax and then execute only one div sectors instruction.  Since sectors is 2 bytes, dx can hold the largest possible remainder.

If the value in dx-ax is large (for example 0x0FF0FF00) and the operand is small (for example 0x0004) and you are interested in the quotient (note that we are only interested in the remainder in this function), then two div instructions are necessary.  Otherwise, the ax register will overflow (i.e. the quotient will exceed 2 bytes).

For this function, let's look at 2 examples.  sector=0x0151FF00, sectors=0x30 for the first example and sector=0x0151FEF0, sectors=0x30 for the second example.  The first example is on a boundary and the second example is not on a boundary.

3498           mov     bx, sp
3499           xor     dx, dx
Expand/Collapse Item3500            mov     ax, 4(bx)       ! divide high half of sector number
Example 1: ax=0x0151, dx=0x0000

Example 2:
ax=0x0151, dx=0x0000

Expand/Collapse Item3501            div     sectors
The div instruction divides dx-ax by the operand (in our example, the value at address sectors) and puts the quotient into ax and the remainder into dx.

Look on line 4279 for sectors.

Example 1:
dx=0x0001 (ax doesn't matter since it will be overwritten)

Example 2:
dx=0x0001

Expand/Collapse Item3502            mov     ax, 2(bx)       ! divide low half of sector number
Example 1:
ax=0xFF00
dx=0x0001

Example 2:
ax=0xFEF0
dx=0x0001

Expand/Collapse Item3503            div     sectors         ! dx = sector % sectors
Example 1:
ax=0x0AA5
dx=0x0010

Example 2:
ax=0x0AA5
dx=0x0000

Expand/Collapse Item3504            sub     dx, #1          ! CF = dx == 0
Example 1:
dx=0x000F
carry flag (CF) =0

Example 2:
dx=0xFFFF (-1 in two's complement)
carry flag (CF) =1

Expand/Collapse Item3505            sbb     ax, ax          ! ax = -CF
sbb ax, ax is the same as ax=ax-ax-CF=-CF

Example 1:
ax=0x0000

Example 2:
ax=0xFFFF

Expand/Collapse Item3506            neg     ax              ! ax = (sector % sectors) == 0
The neg instruction negates a number (e.g. +5 becomes -5 and -10 becomes +10).

This function is called from C code.  C expects the return value from called functions to be in the ax register.

Example 1:
ax=0x0000  (a zero represents false)

Example 2:
ax=0x0001  (a nonzero value represents true)

3507           ret
3508
Expand/Collapse Item3509    ! int readsectors(u32_t bufaddr, u32_t sector, u8_t count)
Expand/Collapse Item3510    ! int writesectors(u32_t bufaddr, u32_t sector, u8_t count)
Expand/Collapse Item3511    !       Read/write several sectors from/to disk or floppy.  The buffer must
Expand/Collapse Item3512    !       be between 64K boundaries!  Count must fit in a byte.  The external
Expand/Collapse Item3513    !       variables _device, sectors and secspcyl describe the disk and its
Expand/Collapse Item3514    !       geometry.  Returns 0 for success, otherwise the BIOS error code.
Expand/Collapse Item3515    !
readsectors() and writesectors() are called from several places in boot.c and bootimage.c. bufaddr is a 32-bit absolute memory address.  sector is a 32-bit absolute sector number on drive _device and count is the number of sectors (starting at sector) that must be read into bufaddr.

Look at the get_sector() function in bootimage.php bufaddr will usually be the absolute memory address of an array (in this case, the array buf).

3516   .define _readsectors, _writesectors
3517   _writesectors:
3518           push    bp
3519           mov     bp, sp
Expand/Collapse Item3520            movb    13(bp), #3      ! Code for a disk write
int 0x13, ah=0x03 writes sectors from memory to disk.
3521           jmp     rwsec
3522   _readsectors:
3523           push    bp
3524           mov     bp, sp
Expand/Collapse Item3525            movb    13(bp), #2      ! Code for a disk read
int 0x13, ah=0x02 reads sectors from disk to memory.
3526   rwsec:  push    di
3527           push    es
3528           mov     ax, 4(bp)
3529           mov     dx, 6(bp)
Expand/Collapse Item3530            call    abs2seg
abs2seg converts the absolute address dx-ax to the segment:offset address dx:ax (see line 3235).
3531           mov     bx, ax
3532           mov     es, dx          ! es:bx = bufaddr
Expand/Collapse Item3533            mov     di, #3          ! Execute 3 resets on floppy error
An attempt to read from or write to hard drives is made twice before giving up.  An attempt to read from or write to floppy drives is made four times before giving up.  Floppy drives need to spin up to speed before being read or written to; this creates complications in the code and sometimes necessitates repeated attempts to read from or write to a floppy.
Expand/Collapse Item3534            cmpb    _device, #0x80
_device will be 0x00 or 0x01 for floppy drives 1 or 2, respectively, and 0x80, 0x81, 0x82, or 0x83 for hard drives 1, 2, 3, or 4, respectively.
3535           jb      nohd
3536           mov     di, #1          ! But only 1 reset on hard disk error
3537   nohd:   cmpb    12(bp), #0      ! count equals zero?
3538           jz      done
Expand/Collapse Item3539    more:   mov     ax, 8(bp)
As many sectors are copied as can be without crossing a track boundary or a cylinder boundary.  The code then loops back to more if there are more sectors to copy.

Lines 3539-3557 set up the registers for the int 0x13 bios call on line 3560.  It's a pain and not too interesting.

3540           mov     dx, 10(bp)      ! dx:ax = abs sector.  Divide it by sectors/cyl
3541           div     secspcyl        ! ax = cylinder, dx = sector within cylinder
3542           xchg    ax, dx          ! ax = sector within cylinder, dx = cylinder
3543           movb    ch, dl          ! ch = low 8 bits of cylinder
Expand/Collapse Item3544            divb    sectors         ! al = head, ah = sector (0-origin)
divb divides ax by the operand and places the quotient in al and the remainder in ah.
3545           xorb    dl, dl          ! About to shift bits 8-9 of cylinder into dl
3546           shr     dx, #1
3547           shr     dx, #1          ! dl[6..7] = high cylinder
3548           orb     dl, ah          ! dl[0..5] = sector (0-origin)
3549           movb    cl, dl          ! cl[0..5] = sector, cl[6..7] = high cyl
3550           incb    cl              ! cl[0..5] = sector (1-origin)
3551           movb    dh, al          ! dh = head
3552           movb    dl, _device     ! dl = device to use
Expand/Collapse Item3553            movb    al, sectors     ! Sectors per track - Sector number (0-origin)
Expand/Collapse Item3554            subb    al, ah          ! = Sectors left on this track
ah contains the first sector that is copied to/from (see line 3544).
3555           cmpb    al, 12(bp)      ! Compare with # sectors to transfer
3556           jbe     doit            ! Can't go past the end of a cylinder?
3557           movb    al, 12(bp)      ! 12(bp) < sectors left on this track
3558   doit:   movb    ah, 13(bp)      ! Code for disk read (2) or write (3)
3559           push    ax              ! Save al = sectors to read
Expand/Collapse Item3560            int     0x13            ! call the BIOS to do the transfer
int 0x13 , ah=0x02/0x03 copies sectors from/to a hard drive or floppy (specified by dl ) to/from memory.  al specifies how many sectors to copy, bits 0-5 of cl specify the sector number, dh specifies the head number and ch specifies the low 8 bits of the cylinder number and bits 6-7 of cl specify the high bits of the cylinder number.  es:bx specifies where in memory to load the sectors.  If the int 0x13 , ah=0x02/0x03 call fails, the carry (C) flag is set. int 0x13 , ah=0x02/0x03 returns 0 in ah if successful and an error code in ah if unsuccessful.
3561           pop     cx              ! Restore al in cl
Expand/Collapse Item3562            jc      ioerr           ! I/O error
If something goes wrong with the int 0x13 bios call, the carry flag is set.  If the carry flag is set, a jump is made to ioerr.
3563           movb    al, cl          ! Restore al = sectors read
Expand/Collapse Item3564            addb    bh, al        ! bx += 2 * al * 256 (add bytes transferred)

Lines 3564-3568 update the addresses (memory and hard drive sector) and count.

3565           addb    bh, al          ! es:bx = where next sector is located
3566           add     8(bp), ax       ! Update address by sectors transferred
3567           adc     10(bp), #0      ! Don't forget high word
3568           subb    12(bp), al      ! Decrement sector count by sectors transferred
3569           jnz     more            ! Not all sectors have been transferred
3570   done:   xorb    ah, ah          ! No error here!
3571           jmp     finish
Expand/Collapse Item3572    ioerr:  cmpb    ah, #0x80       ! Disk timed out?  (Floppy drive empty)
int 0x13, ah=0x02/0x03 returns an error code in ah if the bios call is unsuccessful.  An error code of 0x80 means that the drive was empty and 0x03 means that the drive is write protected.
3573           je      finish
3574           cmpb    ah, #0x03       ! Disk write protected?
3575           je      finish
Expand/Collapse Item3576            dec     di              ! Do we allow another reset?
Expand/Collapse Item3577            jl      finish          ! No, report the error
di was set on lines 3533 (floppy drives) and 3536 (hard drives).  It is decremented for each loop back to more (line 3539).  When di becomes negative, we give up trying.
3578           xorb    ah, ah          ! Code for a reset (0)
3579           int     0x13
3580           jnc     more           ! Succesful reset, try request again
Expand/Collapse Item3581    finish: movb    al, ah
At this point, ah contains either an error code or 0x00 if there was no error.
3582           xorb    ah, ah          ! ax = error number
Expand/Collapse Item3583            pop     es
Expand/Collapse Item3584            pop     di
Expand/Collapse Item3585            pop     bp
bp, di and es were saved by pushing them on the stack (lines 3518, 3526 and 3527).  They must now be popped back.
3586           ret
3587
Expand/Collapse Item3588    ! int getch(void);
Expand/Collapse Item3589    !       Read a character from the keyboard, and check for an expired timer.
Expand/Collapse Item3590    !       A carriage return is changed into a linefeed for UNIX compatibility.
This function is called in a couple of places in boot.c.

If the timer expires, getch() returns the ascii code for ESC (the escape key) in ax.  If an escape key is pressed, the escape flag (line 4283) is set and the ascii code for ESC is returned in ax.

In minix, any carriage returns ('\r') read from the keyboard are converted to newlines ('\n').  Before writing to the screen, newlines are converted to a carriage return followed by a newline (see line 3632).

3591   .define _getch
3592   _getch:
3593           movb    ah, #0x01       ! Keyboard status
Expand/Collapse Item3594            int     0x16
int 0x16, ah=0x01 checks whether a key has been pressed and, if a key has indeed been pressed, places the ascii code of the key in alint 0x16, ah=0x01 does not remove the key from the keyboard's buffer. int 0x16, ah=0x00 (line 3603) places the ascii code of the key pressed into al and removes the key from the keyboard's buffer.  If a key has been pressed, int 0x16, ah=0x01 unsets the zero flag (Z=0).
3595           jnz     press
Expand/Collapse Item3596            call    _expired        ! Timer expired?
expired() is defined in boot.c.
3597           test    ax, ax
3598           jz      _getch
Expand/Collapse Item3599            mov     ax, #ESC        ! Return ESC
ESC is a macro #defined on line 3041.
3600           ret
3601   press:
3602           xorb    ah, ah          ! Read character from keyboard
Expand/Collapse Item3603            int     0x16
int 0x16 , ah=0x00 (line 3603) places the ascii code of the key pressed into al and removes the key from the keyboard's buffer.
Expand/Collapse Item3604            cmpb    al, #0x0D       ! Carriage return?
0x0D is the ascii code for a carriage return ('\r').  0x0A (see line 3606) is the ascii code for a linefeed ('\n').
3605           jnz     nocr
Expand/Collapse Item3606            movb    al, #0x0A       ! Change to linefeed
This is the line where carriage returns are converted to linefeeds.
3607   nocr:   cmpb    al, #ESC        ! Escape typed?
3608           jne     noesc
Expand/Collapse Item3609            inc     escape          ! Set flag
If the escape key was pressed, the escape flag must be incremented.
Expand/Collapse Item3610    noesc:  xorb    ah, ah          ! ax = al
Since an ascii code is only a single byte and values are returned in ax, the high byte of ax (which is ah) must be zeroized.
3611           ret
3612
Expand/Collapse Item3613    ! int escape(void);
Expand/Collapse Item3614    !       True if ESC has been typed.
The escape flag (line 4283) is set by getch() (line 3592) when the escape key (ESC) is pressed.  If an escape key is waiting in the keyboard's buffer or the escape flag is set, escape() returns true (a nonzero value) in ax.  If an escape key is waiting in the keyboard's buffer, escape() also discards the key from the buffer.
3615   .define _escape
3616   _escape:
3617           movb    ah, #0x01       ! Keyboard status
3612
Expand/Collapse Item3618            int     0x16
int 0x16, ah=0x01 checks whether a key has been pressed and places the ascii code of the key in alint 0x16, ah=0x01 does not remove the key from the keyboard's buffer.    If a key has been pressed, int 0x16, ah=0x01 unsets the zero flag (Z=0).
3619           jz      escflg          ! Keypress?
3620           cmpb    al, #ESC        ! Escape typed?
3621           jne     escflg
3622           xorb    ah, ah          ! Discard the escape
Expand/Collapse Item3623            int     0x16
int 0x16, ah=0x00 (line 3603) places the ascii code of the key pressed into al and removes the key from the keyboard's buffer.  It is already known that the pressed key is the escape key (ESC).
3624           inc     escape          ! Set flag
3625   escflg: xor     ax, ax
3626           xchg    ax, escape      ! Escape typed flag
3627           ret
3628
Expand/Collapse Item3629    ! int putch(int c);
Expand/Collapse Item3630    !       Write a character in teletype mode.  The putk synonym is
Expand/Collapse Item3631    !       for the kernel printk function that uses it.
Expand/Collapse Item3632    !       Newlines are automatically preceded by a carriage return.
Expand/Collapse Item3633    !
printk needs putk to print individual characters.  The printk function substitutes the arguments itself.  So for the following C function call:

printk("my name is %s", "Andrew");

printk substitutes "Andrew" for "%s" to form the string "my name is Andrew" before calling putk to print the individual characters.

3634   .define _putch, _putk
3635   _putch:
3636   _putk:  mov     bx, sp
3637           movb    al, 2(bx)       ! al = character to be printed
Expand/Collapse Item3638            testb   al, al          ! 1.6.* printk adds a trailing null
Expand/Collapse Item3639            jz      nulch
It seems a little pointless for printk to call putk with a null (0) argument if putk doesn't print anything and just returns a 0.  If you understand why printk does this, please submit a comment to the site which will be displayed below.
Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: Apr 30 2004 13:01:34 GMT
Subject:  putk()
Reponse: printk() is defined in lib/other/printk.c

As we read in the comment there:
'Printk() uses putk() to print characters.'

The first instruction of printk() is a large while loop that uses putk() to print the characters and the second marks the end with a null character:

---------------
while ((c= *fmt++) != 0) {
.
.
.
}
putk(0);
---------------

So printk() in the fist instruction passes non-null characters to putk(). The only case to pass a null character is at the second instruction where putk() does return and so it is meaningless. However the putk() implemented in boothead.s is not the only one. It has other versions in different parts of Minix. That means that there are putk() versions in: fs/putk.c, inet/putk.c, mm/putk.c etc, used by printk(), where putk() is implemented differently.

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


3640           cmpb    al, #0x0A       ! al = newline?
3641           jnz     putc
3642           movb    al, #0x0D
Expand/Collapse Item3643            call    putc            ! putc('\r')
Expand/Collapse Item3644            movb    al, #0x0A       ! Restore the '\n' and print it
It's clever how the ret instruction on line 3648 can return to line 3644 if putc is called on line 3643 or it can return to the printk function that called putch or putk.
3645   putc:   movb    ah, #0x0E       ! Print character in teletype mode
3646           mov     bx, #0x0001     ! Page 0, foreground color
Expand/Collapse Item3647            int     0x10            ! Call BIOS VIDEO_IO
int 0x10, ah=0x0E prints the character in al to the current cursor position and advances the cursor.  bh holds the active page and bl holds the foreground color.
3648   nulch:  ret
3649
Expand/Collapse Item3650    ! void set_mode(unsigned mode);
Expand/Collapse Item3651    ! void clear_screen(void);
Expand/Collapse Item3652    !       Set video mode / clear the screen.
cur_vid_mode (line 4278) is a global variable that holds the mode.  Possible values of cur_vid_mode are given on lines 3664 and 3668.

There are a few things that I couldn't find in either the assembler book or the bios book I was using.  If you have a book with the answers to the questions below, please submit a comment to the site.

Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: Feb 01 2004 15:58:28 GMT
Subject:  recommended book
Reponse: the following title I think is the most helpful:
Frank van Gilluwe, The Undocumented PC, Addison-Wesley, ISBN 0-201-47950-8

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


3653   .define _set_mode, _clear_screen
3654   _set_mode:
3655           mov     bx, sp
3656           mov     ax, 2(bx)       ! Video mode
3657           cmp     ax, cur_vid_mode
3658           je      modeok          ! Mode already as requested?
3659           mov     cur_vid_mode, ax
3660   _clear_screen:
3661           mov     ax, cur_vid_mode
Expand/Collapse Item3662            andb    ah, #0x7F       ! Test bits 8-14, clear bit 15 (8x8 flag)
Modes for xvesa adapters have a nonzero ah.  I'm not sure what the 8x8 flag is.  If you know, please submit a comment to the site which will be displayed below.
Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: Feb 01 2004 15:42:32 GMT
Subject:  The 8x8 flag
Reponse: ==================================================

--------
3659 mov cur_vid_mode, ax
3660 _clear_screen:
3661 mov ax, cur_vid_mode
3662 andb ah, #0x7F ! Test bits 8-14, clear bit 15 (8x8 flag)
--------

At 3659 ax which holds the mode which in our example could be 0x8003 or 0x8007 (we explain latter the what numbers stand for) is stored as 03-80 or 07-80 (This is due to the Little Endian processor)
With 3661 cur_vid_mode (03 - 80) goes to ax (80 - 03) thus al obtains 0x03 and ah 0x80.

At 3362 we compare ah with 0x7F (0x7F is binary 01111111) so we set off bit 15 and ax at bits 8-14 remains the upper part of mode number. If the result is nonzero we have xvesa otherwise standard mode.
For xvesa bit 15 (which is the 8x8 flag as we read at the comment) is not used as such from int 0x10 ax 4f02, but rather as the bit that determines if video memory is cleared. This bit is set to zero anyway so at section _clear_screen the screen is cleared. For standard mode bit 7 of al, which also determines if memory is cleared goes off early, at line 3110 so int 0x10 with ah zero clears also the screen (while resetting video).

At line 3669, at label 'mdset' we load again the value from cur_vid_mode+1 (the upper part in Little Endian) and this time we translate bit 15 as 8x8 flag (the flag that determines if character size 8x8 is loaded).

--------
mdset: testb cur_vid_mode+1, #0x80
--------

0x80 is binary 10000000 and this is added to mode number to determine if 8x8 size characters should be set. This is a Minix 'invention' to give bit 15 a new meaning, and override the usual 'blanking' which is always set.

But where could mode take its value from? As we see at line 3109 at the start of boothead.s the code uses int 0x10, ah 0x0F to get the current video mode and store it at old_vid_mode and cur_vid_mode. Another way is by the bootimage.c which uses 'console' among the boot parameters who are passed to the kernel.

_set_mode is called from bootimage.c at line 7545:

--------
if ((console= b_value("console")) == nil || (mode= a2x(console)) == 0) {
mode= strcmp(b_value("chrome"), "color") == 0 ? COLOR_MODE :
MONO_MODE;
}
--------

where COLOR_MODE and MONO_MODE are defined in boot.h as:

--------
0236 #define MONO_MODE 0x07 /* 80x25 monochrome. */
0237 #define COLOR_MODE 0x03 /* 80x25 color. */
--------

thus mode can be MONO_MODE (0x07), COLOR_MODE (0x03) or the hex value of console. As we can see at monitor(8), at section console:
"If you add 8000 to the mode number then the monitor will try to put the video card into 8x8 pixel font mode." Thus it also can be 0x8007 and 0x8003. So mode either than 0x03 and 0x07 could be 0x8003 and 0x8007. Those examples represent standard mode, since xvesa modes have values with bits 14-8 non zero.


==================================================

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


3663           jnz     xvesa           ! VESA extended mode?
Expand/Collapse Item3664            int     0x10            ! Reset video (ah = 0)
int 0x10, ah=0x00 sets the video to the standard video mode (as opposed to extended VESA mode) specified by al.  Possible values of al are 0x00 (CGA; text; resolution:  320x200; 2 colors), 0x03 (VGA; text; 720x400; 16), and 0x11 (VGA; graphics; 640x480; 2).
3665           jmp     mdset
Expand/Collapse Item3666    xvesa:  mov     bx, ax          ! bx = extended mode
Super VGA (SVGA) and extended VGA (EVGA and XVGA) are examples of modes conforming to the extended VESA (Video Electronics Standard Assocation).
3667           mov     ax, #0x4F02     ! Reset video
Expand/Collapse Item3668            int     0x10
int 0x10, ax=4F02 sets the mode specified by bx for extended VESA adapters.  Possible values of bx are 0x0100 (resolution:  640x400; 256 colors), 0x0106 (1,280x1,024; 16), and 0x0108 (80x60 in text mode).
3669   mdset:  testb   cur_vid_mode+1, #0x80
3670           jz      setcur          ! 8x8 font requested?
3671           mov     ax, #0x1112     ! Load ROM 8 by 8 double-dot patterns
3672           xorb    bl, bl          ! Load block 0
Expand/Collapse Item3673            int     0x10
I cannot find information on int 0x10, ax=0x1112.  If your book covers this bios call, please submit a comment to the site which will be displayed below.
Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: Feb 01 2004 16:28:48 GMT
Subject:  int 0x10 ax=0x1112
Reponse: Interrupt 0x10 with ax=0x1112 loads the adapter's internal 8x8 font into the font page specified by bl.

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


3674   setcur: xor     dx, dx          ! dl = column = 0, dh = row = 0
3675           xorb    bh, bh          ! Page 0
3676           movb    ah, #0x02       ! Set cursor position
Expand/Collapse Item3677            int     0x10
int 0x10, ah=0x02 sets the cursor to the position specified by dl (column), dx (row), and bh (page).
3678   modeok: ret
3679
3680 restore_video:                  ! To restore the video mode on exit
Expand/Collapse Item3681            mov     ax, old_vid_mode
old_vid_mode is also a global variable (line 4277).  It is set on line 3111 and is the baseline video mode in which the system begins after being powered up.
3682           push    ax
3683           call    _set_mode
3684           pop     ax
3685           ret
3686
Expand/Collapse Item3687    ! u32_t get_tick(void);
Expand/Collapse Item3688    !       Return the current value of the clock tick counter.  This counter
Expand/Collapse Item3689    !       increments 18.2 times per second.  Poll it to do delays.  Does not
Expand/Collapse Item3690    !       work on the original PC, but works on the PC/XT.
get_tick() returns the number of ticks since midnight.
3691   .define _get_tick
3692   _get_tick:
3693           xorb    ah, ah          ! Code for get tick count
3694           int     0x1A
3695           mov     ax, dx
3696           mov     dx, cx          ! dx:ax = cx:dx = tick count
3697           ret
3698
3699
Expand/Collapse Item3700  ! Functions used to obtain info about the hardware.  Boot uses this information
Expand/Collapse Item3701    ! itself, but will also pass them on to a pure 386 kernel, because one can't
Expand/Collapse Item3702    ! make BIOS calls from protected mode.  The video type could probably be
Expand/Collapse Item3703    ! determined by the kernel too by looking at the hardware, but there is a small
Expand/Collapse Item3704    ! chance on errors that the monitor allows you to correct by setting variables.
The environment variable bus is set using this function in boot.c.  This variable is passed on to the minix kernel.

The comment on lines 3700-3702 doesn't apply to minix-386.  On line 3902, the address int86 (line 4045) is pushed on the stack (if the kernel's K_INT86 flag is set) before jumping to the kernel (line 3933).  The int86 function allows minix-386 to make 8086 bios interrupt calls.

It's possible that minix-386 isn't a "pure" 386 kernel since it can switch back temporarily to real mode to make a bios call.  I'm not sure what a "pure" 386 kernel is.

get_bus() uses the int 0x15, ah=0xC0 bios call and getprocessor() to determine the bus.  get_bus() returns 0 for an XT, 1 for an AT, and 2 for an MCA.

The XT bus was introduced with the Intel 8088 processor and has 8 data lines (the 8088 was an 8-bit processor) and 20 address lines.  The XT bus operates at 4.77MHz, the same speed as the 8088.  The PC bus is another name for the XT bus.

The AT bus was introduced with the 80286 and has 16 data lines (the 80286 is a 16-bit processor) and 24 address lines (the 80286 can address up to 16 megabytes).  The most common speed of the AT bus is 8MHz.  The ISA bus is another name for the AT bus.

The MCA bus is a proprietary IBM bus that was introduced with the IBM PS/2 (the PS/2 has an 80386 processor).  It has 32 data lines (the 80386 is a 32-bit processor) and 32 address lines (the 80386 can address up to 4 gigabytes).  The MCA bus is not compatible with the XT and AT buses. Therefore old XT and AT adapter cards cannot be used.  Also, IBM charged high royalty fees to use the MCA technology.  These two things prevented MCA from becoming as commonplace as the competing EISA standard.

Modern buses include the PCI bus and the SCSI bus.

3705
3706   .define _get_bus                ! returns type of system bus
3707   .define _get_video              ! returns type of display
3708
3709   ! u16_t get_bus(void)
3710   !       Return type of system bus, in order: XT, AT, MCA.
3711   _get_bus:
Expand/Collapse Item3712            call    _getprocessor
As explained on line 3145, it's pretty obvious what _getprocessor does, but I can't find where it's defined.  I believe that the compiler supplies the function.  _getprocessor returns 86 into ax for an 8086, 286 for a 80286, 386 for a 80386 and so on.
3713           xor     dx, dx          ! Assume XT
3714           cmp     ax, #286        ! An AT has at least a 286
3715           jb      got_bus
3716           inc     dx              ! Assume AT
3717           movb    ah, #0xC0       ! Code for get configuration
Expand/Collapse Item3718            int     0x15
int 0x15 ,ah=0xC0 returns the address of the system configuration table in es:bx.  We are only concerned with the 5th byte in the table - the "feature byte #1".  The int 0x15 , ah=0xC0 bios call clears the carry flag  (CF =0) and places 0x00 in ah if the call was successful.  It either sets the carry flag (CF=1) or places 0x86 in ah if the call was unsuccessful.  If the call is unsuccessful, the bus must be an AT bus since all MCA buses support the int 0x15 , ah=0xC0 bios call.  Some, but not all, AT buses support this bios call.
3719           jc      got_bus         ! Carry clear and ah = 00 if supported
3720           testb   ah, ah
3721           jne     got_bus
3722           eseg
3723           movb    al, 5(bx)       ! Load feature byte #1
3724           inc     dx              ! Assume MCA
3725           testb   al, #0x02       ! Test bit 1 - "bus is Micro Channel"
3726           jnz     got_bus
3727           dec     dx              ! Assume AT
Expand/Collapse Item3728            testb   al, #0x40       ! Test bit 6 - "2nd 8259 installed"
The 8259 is a bus controller.  The XT bus has one and the AT has two.
3729           jnz     got_bus
3730           dec     dx              ! It is an XT
3731   got_bus:
3732           push    ds
3733           pop     es              ! Restore es
3734           mov     ax, dx          ! Return bus code
Expand/Collapse Item3735            mov     bus, ax         ! Keep bus code, A20 handler likes to know
bus is an uninitialized global variable and (for this reason) is found in the bss (see line 4284).
3736           ret
3737
Expand/Collapse Item3738    ! u16_t get_video(void)
Expand/Collapse Item3739    ! u16_t get_video(void)
Expand/Collapse Item3739    !       Return type of display, in order: MDA, CGA, mono EGA, color EGA,
Expand/Collapse Item3740    !       mono VGA, color VGA.
Go to this link for a short description of different display standardsget_video() returns the video type in ax.
3741   _get_video:
3742           mov     ax, #0x1A00     ! Function 1A returns display code
3743           int     0x10            ! al = 1A if supported
Expand/Collapse Item3744            cmpb    al, #0x1A
int 0x10, ax=0x1A00 returns 5 in bl if the display type is a monochrome EGA, 4 in bl for a color EGA, 7 in bl for a monochrome VGA, and 8 in bl for a color VGA.  If the int 0x10, ax=0x1A00 bios call is not supported, the int 0x10, ah=0x12, bl=0x10 bios call (line 3762) is attempted and if that doesn't work, the int 0x11 bios call (line 3772) is attempted.
3745           jnz     no_dc           ! No display code function supported
3746
3747           mov     ax, #2
3748           cmpb    bl, #5          ! Is it a monochrome EGA?
3749           jz      got_video
3750           inc     ax
3751           cmpb    bl, #4          ! Is it a color EGA?
3752           jz      got_video
3753           inc     ax
3754           cmpb    bl, #7          ! Is it a monochrome VGA?
3755           jz      got_video
3756           inc     ax
3757           cmpb    bl, #8          ! Is it a color VGA?
3758           jz      got_video
3759
3760   no_dc:  movb    ah, #0x12       ! Get information about the EGA
3761           movb    bl, #0x10
Expand/Collapse Item3762            int     0x10
int 0x10, ax=0x12, bl=0x10 is specifically for monochrome EGA and color EGA adapters.  If the adapter isn't an EGA, the bios call returns 0x10 in bl.  If the adapter is a monochrome EGA adapter, the bios call returns 1 in bh.

As an aside, I have not found a complete reference for bios calls.  In these notes, I have often needed to look at the code to determine what a bios call does.  This is obviously not ideal.  I have an assembler book (8086/8088, 80286, 80386, and 80486 Assembly Language Programming by Barry B. Brey) and a PC bios book (System BIOS for IBM PCs, Compatibles, and EISA Computers, Second Edition) and both are incomplete.  I've also searched the web looking for a good bios reference.  If anyone has found the nirvana of bios books, please submit a comment to the site which will be displayed below.

Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: May 02 2004 12:50:10 GMT
Subject:  Interrupt List
Reponse: "Ralf Brown's Interrupt List" is a comprehensive listing of interrupt calls, I/O ports, memory locations, etc. It can be found at various URLs, for example:
http://www-2.cs.cmu.edu/~ralf/files.html
and
http://www.delorie.com/djgpp/doc/rbinter/ix/

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


3763           cmpb    bl, #0x10       ! Did it come back as 0x10? (No EGA)
3764           jz      no_ega
3765
3766           mov     ax, #2
3767           cmpb    bh, #1         ! Is it monochrome?
3768           jz      got_video
3769           inc     ax
3770           jmp     got_video
3771
Expand/Collapse Item3772    no_ega: int     0x11            ! Get bit pattern for equipment
int 0x11 returns a system equipment list in ax.  Bits 4-5 of ax specify the video mode.  If the adapter is an MDA adapter, both bits are set.
3773           and     ax, #0x30       ! Isolate color/mono field
3774           sub     ax, #0x30
3775           jz      got_video       ! Is it an MDA?
3776           mov     ax, #1          ! No it's CGA
3777
3778   got_video:
3779           ret
3780
3781
Expand/Collapse Item3782    ! Functions to leave the boot monitor.
Since the next two functions are called from code outside these files, they must be .defined.  Names of functions that are called from outside the assembler file in which they are defined must be preceded by an underscore (_).
3783   .define _bootstrap              ! Call another bootstrap
3784   .define _minix                  ! Call Minix
3785
Expand/Collapse Item3786    ! void bootstrap(int device, struct part_entry *entry)
Expand/Collapse Item3787    !       Call another bootstrap routine to boot MS-DOS for instance.  (No real
Expand/Collapse Item3788    !       need for that anymore, now that you can format floppies under Minix).
Expand/Collapse Item3789    !       The bootstrap must have been loaded at BOOTSEG from "device".
I believe the comment indicates that minix was unable to format floppies earlier.  So if you wanted to format a floppy, you would exit the minix kernel and return to the boot monitor (this program) and then call the bootstrap of a partition that contained MS-DOS.  You'd then format the floppy in MS-DOS, reboot the system and then return to the minix kernel.  This sounds like a pain.  Since formatting floppies is a common task, it's good that they gave minix the capability to format floppies.


Now's a good time to give an overview of the boot monitor.  Note that the boot monitor is another name for the secondary boot - the code we're studying now.

After going through an initialization routine (part of which we've already seen on lines 3062-3180), the secondary boot enters a command loop on lines 6617-6625 of boot.cmonitor() reads a line that the user types in and parses it into tokens to form a command chain (which we'll discuss ad nauseum in boot.c).  execute() takes this command chain and executes the appropriate function.

Since this sequence will be clearer with an example and since we're looking at the bootstrap() function, let's see how a user boots a different partition.  Let's say, for example, that this program (the secondary boot) came from hd1 and the user (for whatever reason) wants to boot partition hd4.  The user types in:

hd1> boot hd4

monitor() parses this string into two tokens, "boot" and "hd4", and links them together to form a two token command chain.  execute() goes through its numerous if clauses looking for a command string with two tokens, the first of which is "boot".  It finds a match and calls the appropriate function, boot_device(). boot_device() makes sure that hd4 can be booted and then calls exec_bootstrap().

exec_bootstrap() calls bootstrap()(line 6112) after readsector() (line 6103) reads in the first sector of the partition (the boot sector) specified by entryreadsector() reads the boot sector into memory location 0x0000:0x7C00.

BOOTOFF is a macro defined as 0x7C00 in this file (line 3020) and BOOTPOS is a macro defined as 0x7C00 in boot.h.  Since BOOTSEG is not defined in this file, the comment referring to BOOTSEG is confusing and appears to be a mistake or a remnant of a previous boothead.s that defined the macro BOOTSEG.

  As a review, here's the layout of a partition table entry.

3790   _bootstrap:
Expand/Collapse Item3791            call    restore_video
restore_video() is on line 3680.  It restores the system to the baseline video mode in which it began after being powered up.
3792           mov     bx, sp
3793           movb    dl, 2(bx)       ! Device to boot from
3794           mov     si, 4(bx)       ! ds:si = partition table entry
3795           xor     ax, ax
3796           mov     es, ax          ! Vector segment
3797           mov     di, #BUFFER     ! es:di = buffer in low core
3798           mov     cx, #PENTRYSIZE ! cx = size of partition table entry
Expand/Collapse Item3799     rep    movsb                   ! Copy the entry to low core
rep movsb moves cx bytes from ds:si to es:di.  In this case, the partition entry specified by entry is copied to 0:BUFFER (defined as 0x0600 on line 3022), where it should be safe from being overwritten by the bootstrap that has just been loaded.
Expand/Collapse Item3800            mov     si, #BUFFER     ! es:si = partition table entry
The minix bootstrap and MS-DOS's bootstrap expect dl to hold the device being booted and es:si to hold the address of the partition table entry of the partition being booted.  Possible values of dl are 0x00 and 0x01 for the first and second floppy drives and 0x80, 0x81, 0x82, and 0x83 for hard drives 1-4.
Expand/Collapse Item3801            mov     ds, ax          ! Some bootstraps need zero segment registers
The minix bootstrap doesn't need to zeroize the segment registers since the first thing it does it to zeroize the ds and ss registers.
3802           cli
3803           mov     ss, ax
Expand/Collapse Item3804            mov     sp, #BOOTOFF    ! This should do it
The beginning of the bootstrap's code will be the top of the bootstrap's stack.
3805           sti
Expand/Collapse Item3806            jmpf    BOOTOFF, 0      ! Back to where the BIOS loads the boot code
0:BOOTOFF is indeed the memory location where the bios loads the first sector of floppy drives and hard drives when the system starts.  However, the bootstrap to which the code jumps was loaded by readsector() in boot.c and not by the bios.  For this reason, the comment is a little misleading.

jmpf BOOTOFF, 0 jumps to 0:BOOTOFF.

3807
Expand/Collapse Item3808    ! u32_t minix(u32_t koff, u32_t kcs, u32_t kds,
Expand/Collapse Item3809    !                               char *bootparams, size_t paramsize, u32_t aout);
Expand/Collapse Item3810    !       Call Minix.
Please read the comments for lines 3786-3789 before reading these comments.

The user wishes to load the minix kernel.  He can follow several paths from the boot monitor; I'll describe two.  1) He can simply load the kernel.  2) He can pass an option to the kernel while loading it.  If he wishes to simply load the kernel, he types in:

hd1> boot

monitor() reads this in and parses it into a one token command chain ("boot").  execute() finds a match and executes bootminix()bootminix() in bootimage.c calls exec_image(), which reads the OS image (i.e. the kernel+fs+mm+networking(if enabled)+init) into memory and then finally calls minix() on line 7555.

If the user wishes to pass an option to the kernel, he types in:

hd1> boot -option1

monitor() reads this in and parses it into a two token command chain ("boot" and "-option1").  execute() finds a match and sets the environment variable bootopts to "-option1" before calling bootminix().  This environment variable can be accessed by the kernel.

minix() sets up the stack the way the kernel expects it, sets ds and es to the kernel's ds and es, and then jumps to the kernel.  If the kernel is minix-386 (as opposed to minix-86), minix() also switches from real mode to protected mode.

Here's the stack after line 3813:

3811   _minix:
3812           push    bp
3813           mov     bp, sp          ! Pointer to arguments
3814
3815           mov     dx, #0x03F2     ! Floppy motor drive control bits
3816           movb    al, #0x0C       ! Bits 4-7 for floppy 0-3 are off
Expand/Collapse Item3817            outb    dx              ! Kill the motors
outb sends the data in al to the port specified by the operand (in this case, dx).  Note that dx does not contain an address in memory; it contains an address in the I/O space.

Bits 4-5 of I/O address 0x03F2 are the floppy control bits for floppy drives 1-2.  An input of 0x0C (00001100) disables the 2 motors.  (Bits 4-5 are the fifth and sixth bits from the right.  The bits are 0-indexed.)

Bit 3 of I/O address 0x03F2 is for floppy drive DMA enable and bit 2 is for floppy controller reset.  A 0 in bit 2 resets the floppy drive (since bit 2 is high for 0x0C, the controller is not reset).  The other bits are unused.

exec_image() loads the OS image before calling minix().  Since the image has already been loaded, there's no reason why any drive (floppy drive or hard drive) should be needed for some time.  So the motors are killed.
3818           push    ds
3819           xor     ax, ax         ! Vector & BIOS data segments
3820           mov     ds, ax
Expand/Collapse Item3821            andb    0x043F, #0xF0   ! Clear diskette motor status bits of BIOS
Bits 0-1 of memory address 0x043F (the range 0x400-0x4FF in memory is the bios data area) are the motor status bits for floppy drives 1 and 2, respectively.  They need to be changed to reflect the previous outb instruction (line 3817).

As an aside, I'm not sure why the floppy status bits don't automatically reflect the state of the floppy drives.  It seems strange that we need to manually change the status bits.  If you have any insight into this, please submit a comment to the site which will be displayed below.

Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: Mar 28 2004 13:50:52 GMT
Subject:  'killing' the motors
Reponse: As we know, floppy motors should be 'killed' to enter the protected mode in a consistent state, by avoiding the motors spinning endlessly. This could be caused, for example by loading the OS from floopy then moving to protected mode, from real mode and the BIOS, before floopy motor have stoped.

Linux OS does that by the I/O operation:

mov dx,#0x3f2
mov al,#0
outb

Minix, on the other hand, goes a step further and also uses:

andb 0x043F, #0xF0

which updates the BIOS data area (it is not updated automatically by an I/O operation). This difference in 'philosophy' has to do with the fact that when Minix shuts it returns to the Boot Monitor, which uses the BIOS, so it preferable that the data structures of BIOS data area are accurate. Linux, doesn't care, because it never gives control back to the BIOS.

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


3822           pop     ds
Expand/Collapse Item3823            cli                     ! No more interruptions
The interrupts won't be enabled until the code jumps to the kernel.
3824
3825           test    _k_flags, #K_I386 ! Switch to 386 mode?
3826           jnz     minix386
3827
3828   ! Call Minix in real mode.
Expand/Collapse Item3829    minix86:
If minix is called in real mode, everything's a little easier.  There's no need to switch to protected mode.

By the time the code reaches the retf instruction (line 3860), the stack looks like this:


The retf instruction pops the last 4 bytes (kernel cs and kernel offset) off the stack.

3830           test    _k_flags, #K_MEML ! New memory arrangements?
Expand/Collapse Item3831            jz      0f
jz 0f jumps forward (f) to the first 0: label.
3832           push    22(bp)          ! Address of a.out headers
3833           push    20(bp)
3834   0:
3835           push    18(bp)          ! # bytes of boot parameters
3836           push    16(bp)          ! Address of boot parameters
3837
3838           test    _k_flags, #K_RET ! Can the kernel return?
3839           jz      noret86
3840           mov     dx, cs          ! Monitor far return address
Expand/Collapse Item3841            mov     ax, #ret86
Look on line 3935 for ret86.  The minix-86 kernel returns to the monitor at ret86.
Expand/Collapse Item3842            cmp     _mem+14, #0     ! Any extended memory?  (mem[1].size > 0 ?)
The mem[] array is initialized on lines 3137-3177.
3843           jnz     0f
Expand/Collapse Item3844            xor     dx, dx         ! If no ext mem then monitor not preserved
There isn't room for the boot monitor if there's no extended memory.
3845           xor     ax, ax
3846   0:      push    dx              ! Push monitor far return address or zero
3847           push    ax
3848   noret86:
3849
3850           mov     ax, 8(bp)
3851           mov     dx, 10(bp)
Expand/Collapse Item3852            call    abs2seg
abs2seg() (line 3235) converts a 32-bit absolute address in dx-ax to a segment:offset address in dx:ax.
3853           push    dx              ! Kernel code segment
3854           push    4(bp)           ! Kernel code offset
3855           mov     ax, 12(bp)
3856           mov     dx, 14(bp)
3857           call    abs2seg
3858           mov     ds, dx          ! Kernel data segment
3859           mov     es, dx          ! Set es to kernel data too
3860           retf                    ! Make a far call to the kernel
3861
3862   ! Call Minix in 386 mode.
Expand/Collapse Item3863    minix386:
There's quite a bit more to jumping to the minix-386 kernel.  Everything that was done for the minix-86 kernel must be done (setting up the stack the way the kernel expects it and setting ds and es to the kernel's ds and es) plus the switch to protected mode.
Expand/Collapse Item3864      cseg  mov    cs_real-2, cs   ! Patch CS and DS into the instructions that
Expand/Collapse Item3865      cseg  mov    ds_real-2, ds   ! reload them when switching back to real mode
The cseg prefix causes the mov instruction to move the contents of cs and ds to the memory addresses cs:cs_real-2 and cs_ds_real-2 instead of ds:cs_real-2 and ds:ds_real-2.

These addresses are found on lines 4160 and 4162.  0xDEAD and 0xBEEF are overwritten by the contents of cs and ds, respectively.  Did you really think that 0xDEAD and 0xBEEF were meaningful values?

Expand/Collapse Item3866            .data1  0x0F,0x20,0xC0  ! mov   eax, cr0
Expand/Collapse Item3867            orb     al, #0x01       ! Set PE (protection enable) bit
Expand/Collapse Item3868            .data1  o32
Expand/Collapse Item3869            mov     msw, ax         ! Save as protected mode machine status word
The control registers (one of which is cr0) determine the operating mode of the processor.  One of the flags in cr0 is the Protection Enable (PE) flag.  This flag is set on line 3867 but instead of moving the new state to cr0, it is saved in msw (line 4281).  Later, when the switch to protected mode is made (lines 4138-4140), the new state is moved to cr0.

The control registers are unique to the Intel processors with protected mode capabilities.  Since this code was compiled with the -mi86 option (see comment for line 3019), our compiler knows nothing of the control registers.  For this reason, we cannot rely on the compiler to translate an assembler instruction containing cr0 to machine language but must use machine language directly.

The o32 prefix (0x66) converts the instruction mov msw, ax to mov msw, eax.  See the comment for line 3019.

The only complete source (that I know of) that discusses the control registers (and a lot more) is  Volume 3 of the Intel Architecture Software Developer's Manual .  It's not an easy read.

Expand/Collapse Item3870
We now need an overview of the global descriptor table (gdt) and protected mode.

In real mode, the contents of a segment register (cs, ds, ss, etc.) are shifted to the left 4 bits and then added to an offset register (ip, si, sp, etc.) to form an address.  Note that the offset registers are 16-bit registers

For example, if the contents of cs (the code segment) are 0x1000 and the contents of ip (the instruction pointer) are 0x3000, together they form the address 0x13000.

Protected mode is more complex.  The segment register points to an entry in the global descriptor table (gdt).  Look at lines 4242-4274. p_null_desc, p_gdt_desc, p_ds_desc, p_es_desc, etc. are all gdt entries.  Each entry is 8 bytes (2 .data2's + 4 .data1's) and has this layout:

On lines 3871-3897 bytes 2, 3, and 4 of the p_gdt_desc, p_ds_desc, p_ss_desc, p_cs_desc, and p_mcs_desc entries are patched in.  These bytes form the base's first three bytes (the base has a total of four bytes).  The fourth byte (byte 7 in the figure) is zero for all of the entries shown.  Since the kernel is located low in memory, 3 bytes is sufficient for the base of the kernel's entries.

In protected mode, the base of the entry that a segment register (cs, ds, ss, etc.) points to is added to an offset register (eip, esi, esp, etc.) to form an address.  Note that the offset registers are 32-bit registers

For example, suppose the contents of cs (the code segment) is CS_SELECTOR (=6*8; see line 3038).  CS_SELECTOR points to an entry within the gdt (see line 4255).  The base of this entry (p_cs_desc) is added to ip (the instruction pointer) to form an address.

Let's assume that (on lines 3890 and 3891) the base of the entry p_cs_desc is patched with 0x00001100 (the most significant 8 bits are already 0) and that the contents of eip are 0x00000030.  If cs holds CS_SELECTOR, the two registers form the address 0x00001130 (not 0x00011030; neither register is shifted).

Look at the figure above.  Bytes 0, 1 and the 4 least significant bits of byte 6 (for a total of 20 bits; I will call these bits the "limit bits" from here on) and the granularity bit (discussed at the end of this comment) form the limit.  Any offset added to the base must be less than or equal to the limit.  If the limit is exceeded, the processor complains by triggering a General Protection Fault (GPF).  The processor enforces protected mode with the GPF.

Let's assume that cs contains CS_SELECTOR and  the base of the entry p_cs_desc is 0x00001100 and the limit is 0x03000.  If the contents of eip become 0x00003001 or greater, a GPF will be triggered.

The result of a GPF depends on what triggered it.  If a user process triggers the GPF, the user process is terminated.  If the kernel triggers the GPF, you're in trouble.  However, if you look at the comments on lines 4256, 4259, and 4267, you'll see that the data segment descriptor, the extra segment descriptor, and the code segment descriptor have 4 GB limits so the kernel can't trigger a GPF by exceeding its limit.  These 4 GB limits give the kernel "roaming" ability.  The kernel can read from and write to any memory location (of course, it still can't write to any ROM portions of the memory).  This roaming ability is vital to the messaging system, which you'll learn about in the Processes chapter (Chapter 2) of Operating Systems.

The last thing we'll discuss before moving on is the "granularity" of the limit.  The granularity is a bit (bit "G") in byte 6 (labeled "random stuff" in the figure above).  If G=0, the limit bits specify a limit that can be 1 byte to 1M bytes.  If G=1, the limit bits are multiplied by 4K bytes (0x1000).  If G=1, the limit can be any multiple of 4K bytes.  A segment can therefore have a length of 4K bytes to 4G bytes in steps of 4K bytes.

For example, if the limit bits of an entry were 0x00300 and G=0, the limit would be 0x00300.  If the limit bits of an entry were 0x00300 and G=1, the limit would be 0x00300000.

Expand/Collapse Item3871            mov     dx, ds          ! Monitor ds
Expand/Collapse Item3872            mov     ax, #p_gdt      ! dx:ax = Global descriptor table
Expand/Collapse Item3873            call    seg2abs
Expand/Collapse Item3874            mov     p_gdt_desc+2, ax
Expand/Collapse Item3875            movb    p_gdt_desc+4, dl ! Set base of global descriptor table
The first entry of the gdt (p_null_desc; line 4243) must be an entry of all 0's.  It's called the null descriptor.  The second entry must describe the table itself.  On lines 3871-3875, the base of the global descriptor table is patched.  ds:p_gdt (line 4242) is the base of the table.  Before patching in the base of the table, the segment:offset address must be converted to an absolute address.

seg2abs() (line 3235) converts an absolute address in dx-ax to the segment:offset address in dx:ax.

3876
Expand/Collapse Item3877            mov     ax, 12(bp)
Expand/Collapse Item3878            mov     dx, 14(bp)      ! Kernel ds (absolute address)
Expand/Collapse Item3879            mov     p_ds_desc+2, ax
Expand/Collapse Item3880            movb    p_ds_desc+4, dl ! Set base of kernel data segment
On lines 3877-3880, the base of the data segment is patched.  Here, again, are the arguments passed into minix() (lines 3808-3810):

3881
Expand/Collapse Item3882            mov     dx, ss          ! Monitor ss
Expand/Collapse Item3883            xor     ax, ax          ! dx:ax = Monitor stack segment
Expand/Collapse Item3883            xor     ax, ax          ! dx:ax = Monitor stack segment
Expand/Collapse Item3884            call    seg2abs         ! Minix starts with the stack of the monitor
Expand/Collapse Item3885            mov     p_ss_desc+2, ax
Expand/Collapse Item3886            movb    p_ss_desc+4, dl
On lines 3882-3886, the base of the stack segment is patched.  The address ss:0x0000 is used since the kernel initially uses the monitor's stack.  Note that line 06062 in the book corroborates this.
3887
Expand/Collapse Item3888            mov     ax, 8(bp)
Expand/Collapse Item3889            mov     dx, 10(bp)      ! Kernel cs (absolute address)
Expand/Collapse Item3890            mov     p_cs_desc+2, ax
Expand/Collapse Item3891            movb    p_cs_desc+4, dl
On lines 3888-3891, the base of the code segment is patched.
3892
Expand/Collapse Item3893            mov     dx, cs          ! Monitor cs
Expand/Collapse Item3894            xor     ax, ax          ! dx:ax = Monitor code segment
Expand/Collapse Item3894            xor     ax, ax          ! dx:ax = Monitor code segment
Expand/Collapse Item3895            call    seg2abs
Expand/Collapse Item3896            mov     p_mcs_desc+2, ax
Expand/Collapse Item3897            movb    p_mcs_desc+4, dl
On lines 3893-3897, the base of the monitor code segment is patched.  If we wish to return to the boot monitor, we'll need this.
Expand/Collapse Item3898
On lines 3899-3919, the stack is prepared the way the kernel expects it.  Below is the stack after line3925.  The retf instruction on lines 3932-3933 pops off the bottom 8 bytes.

This figure assumes that the K_RET bit in the kernel's k_flags is set.  In other words, this figure assumes that the kernel can return.  The figure also assumes that a list of available memory is being passed in the mem[] array (i.e. the K_MEML bit in the kernel's k_flags is set).

If there's generic INT86 support, the address int86 is pushed on the stack instead of the address bios13.  We will discuss the difference between generic INT86 support and bios int 13 support on line 4020.

3899           push    #MCS_SELECTOR
3900           test    _k_flags, #K_INT86 ! Generic INT86 support?
3901           jz      0f
3902           push    #int86          ! Far address to INT86 support
3903           jmp     1f
3904   0:      push    #bios13         ! Far address to BIOS int 13 support
3905   1:
3906           test    _k_flags, #K_MEML ! New memory arrangements?
3907           jz      0f
3908           .data1  o32
3909           push    20(bp)          ! Address of a.out headers
3910   0:
3911           push    #0
3912           push    18(bp)          ! 32 bit size of parameters on stack
3913           push    #0
3914           push    16(bp)          ! 32 bit address of parameters (ss relative)
3915
Expand/Collapse Item3916            test    _k_flags, #K_RET ! Can the kernel return?
Now's a good time to see how the stack will appear after the jump to the kernel.  Below is the stack after line 06064 in the book.

Note that the code in mpx386.s (look at line 06047 in the book) assumes that MCS_SELECTOR and ret386 are pushed on the stack on lines 3918-3919.  If the two values weren't pushed on the stack, 8(ebp) and 12(ebp) on lines 06093 and 06094 wouldn't correspond  to the boot parameters offset and length (bootparams and paramsize in the figure).

Since we're looking at the code in the book, look at lines 06053 and 06055.  get_clickshift() in bootimage.c extracts click_shift, which we'll discuss later, and k_flags from the kernel image.

3917           jz      noret386
3918           push    #MCS_SELECTOR
3919           push    #ret386         ! Monitor far return address
3920   noret386:
3921
Expand/Collapse Item3922            push    #0
Expand/Collapse Item3923            push    #CS_SELECTOR
Expand/Collapse Item3924            push    6(bp)
Expand/Collapse Item3925            push    4(bp)           ! 32 bit far address to kernel entry point
These 8 bytes will be popped off the stack by the retf instruction on lines 3932-3933.
3926
Expand/Collapse Item3927            call    real2prot       ! Switch to protected mode
real2prot() (line 4128) switches from real mode to protected mode.
Expand/Collapse Item3928            mov     ax, #DS_SELECTOR ! Kernel data
Expand/Collapse Item3929            mov     ds, ax
Expand/Collapse Item3930            mov     ax, #ES_SELECTOR ! Flat 4 Gb
Expand/Collapse Item3931            mov     es, ax
Expand/Collapse Item3932            .data1  o32             ! Make a far call to the kernel
Expand/Collapse Item3933            retf
ds, es, and cs are set in lines 3928-3933. cs is indirectly set by the retf instruction.  Look at line 06062 in the book.  The kernel sets the stack segment (ss) register itself.
3934
Expand/Collapse Item3935  ! Minix-86 returns here on a halt or reboot.
Expand/Collapse Item3936    ret86:
Expand/Collapse Item3937            mov     8(bp), ax
Expand/Collapse Item3938            mov     10(bp), dx      ! Return value
Expand/Collapse Item3939            jmp     return
Expand/Collapse Item3940
Expand/Collapse Item3941    ! Minix-386 returns here on a halt or reboot.
Expand/Collapse Item3942  ret386:
Expand/Collapse Item3943            .data1  o32
Expand/Collapse Item3944            mov     8(bp), ax       ! Return value
Expand/Collapse Item3945            call    prot2real       ! Switch to real mode
Expand/Collapse Item3946
Expand/Collapse Item3947    return:
Expand/Collapse Item3948            mov     sp, bp          ! Pop parameters
Expand/Collapse Item3949            sti                     ! Can take interrupts again
I need to find out what the stack looks like when the kernel returns.  I need to find out where in thekernel code it returns.

Please submit a comment to the site if you know why.
Name: CarlEmail:  Date: Sep 07 2006 16:33:13 GMT
Subject:  What's in 8(bp)
Reponse: I don't understand how 8(bp) of line 3937 and 3944 get to become the return value, as the picture after line 3916 shows that 8(bp) should be the pointer to boot parameters.
Another version of boothead.s, as can be found at uses _reboot_code at line 1128 and does not made reference to bp.

Respond to Carl's comment.


3950
Expand/Collapse Item3951            call    _get_video      ! MDA, CGA, EGA, ...
get_video() (line 3738) returns 0 for an MDA adapter, 1 for a CGA adapter, 2 for a EGA adapter, etc.  If it's a MDA or CGA adapter, there can only be 25 rows.  If it's an EGA adapter or better, memory location ds:0x0484 = 0x0000:0x0484 in the bios data area holds the number of rows minus one.
3952           movb    dh, #24         ! dh = row 24
3953           cmp     ax, #2          ! At least EGA?
3954           jb      is25            ! Otherwise 25 rows
3955           push    ds
3956           xor     ax, ax          ! Vector & BIOS data segments
3957           mov     ds, ax
3958           movb    dh, 0x0484      ! Number of rows on display minus one
3959           pop     ds
3960   is25:
3961           xorb    dl, dl          ! dl = column 0
3962           xorb    bh, bh          ! Page 0
3963           movb    ah, #0x02       ! Set cursor position
Expand/Collapse Item3964            int     0x10
int 0x10, ah=0x02 sets the cursor position at column dl, page bh.
3965
3966           xorb    ah, ah          ! Whack the disk system, Minix may have messed
3967           movb    dl, #0x80       ! it up
Expand/Collapse Item3968            int     0x13
int 0x13, ah=0x00 resets the disk in dl.  Possible values for dl are 0x00 and 0x01 for floppy drives 1 and 2 and 0x80, 0x81, 0x82, and 0x83 for hard drives 1-4.
3969
3966           xorb    ah, ah          ! Whack the disk system, Minix may have messed
3967           movb    dl, #0x80       ! it up
Expand/Collapse Item3970            call    _getprocessor
getprocessor() returns 88 for an 8088 processor, 286 for a 80286 processor, 386 for a 80386 processor, etc.  As noted in the comment for line 3145, I believe that getprocessor() is supplied by the compiler.  If the processor is something less than an 80286 processor, the int 0x1A, ah=0x02 bios call is unavailable and the system clock cannot be reset.
3971           cmp     ax, #286
3972           jb      noclock
Expand/Collapse Item3973            xorb    al, al
Expand/Collapse Item3974    tryclk: decb    al
Expand/Collapse Item3975            jz      noclock
al enters the loop with a value of 0 and is then decremented to a value of 255.  The int 0x1A, ah=0x02 bios call (line 3977) is attempted 255 times before giving up.
3976           movb    ah, #0x02       ! Get real-time clock time (from CMOS clock)
Expand/Collapse Item3977            int     0x1A
int 0x1A, ah=0x02 first determines if the real time clock device is updating its clock value.  If it is updating its clock value, the carry flag is set.  If it's not updating its clock value, al and ch holds the hours since midnight, cl holds the minutes, and dh holds the seconds.  Resetting the system clock is complicated by the fact that int 0x1A, ah=0x02 returns the values in BCD (Binary-Coded Decimal).  Packed BCD stores 2 decimal numbers in 1 byte.  Unpacked BCD stores 1 decimal number in 1 byte.  The values returned in cl, ch, cl, and dh by int 0x1A, ah=0x02 are packed BCD.  Below are some decimal numbers converted to packed and unpacked BCD.

Decimal    Packed BCD    Unpacked BCD
32            0011 0010        0000 0011 0000 0010
99            1001 1001        0000 1001 0000 1001

The conversion from a BCD value to a regular value is done in bcd (line 4014).

3978           jc      tryclk          ! Carry set, not running or being updated
Expand/Collapse Item3979            movb    al, ch          ! ch = hour in BCD
Lines 3979-3991 convert the hours, minutes, and seconds since midnight that int 0x1A, ah=0x02 returns in BCD format to the number of seconds in dx-bx.  Note that dx-bx is a 4 byte value with the upper 2 bytes in dx and the lower 2 bytes in bx.  It does not mean dx minus bx.
Expand/Collapse Item3980            call    bcd           ! al = (al >> 4) * 10 + (al & 0x0F)
See line 4014.
Expand/Collapse Item3981            mulb    c60             ! 60 minutes in an hour
mulb multiplies al by the operand (in this case the value at address c60 (see line 4206), which is 60) and places the result in ax.
3982           mov     bx, ax          ! bx = hour * 60
3983           movb    al, cl          ! cl = minutes in BCD
3984           call    bcd
3985           add     bx, ax          ! bx = hour * 60 + minutes
3986           movb    al, dh          ! dh = seconds in BCD
3987           call    bcd
3988           xchg    ax, bx          ! ax = hour * 60 + minutes, bx = seconds
3989           mul     c60             ! dx-ax = (hour * 60 + minutes) * 60
3990           add     bx, ax
3991           adc     dx, #0          ! dx-bx = seconds since midnight
Expand/Collapse Item3992            mov     ax, dx
It took me a while to figure this out, but 19663/1080=18.2.  There are 18.2 clock ticks per second.  To get the number of clock ticks since midnight, the number of seconds since midnight is multiplied by 19663 and then divided by 1080.

On lines 3992-4003, the number of seconds in dx-bx is converted to the number of clock ticks in cx-dx. int 0x1A, ah=0x01 sets the system time with the number of ticks in cx-dx.

Let's give an example.  Let's assume that the time is 19:25.55.  This is 69955 seconds after midnight.  So 0x0001 will be in dx and 0x1143 will be in bx.  (0x00011143 = 69955)

The mul instruction multiplies ax by the operand (see line 3993).  Since the value that is being multiplyied can be greater than 2 bytes and therefore too big for ax (as in our example - 0x11143), a single mul instruction cannot be used but the multiplication must be broken up into 2 mul instructions (lines 3993 and 3995).

I only show the relevant registers.

ax:  0x0001
bx:  0x1143
dx:  0x0001

Expand/Collapse Item3993            mul     c19663
mul multiplies ax by the operand (in this case the value at address c19663 (see line 4209), which is 19663=0x4CCF) and places the result in dx-ax.

ax:  0x4CCF
dx:  0x0000

(1*19663=19663=0x00004CCF)

Expand/Collapse Item3994            xchg    ax, bx
ax:  0x1143
bx:  0x4CCF
dx:  0x0000
Expand/Collapse Item3995            mul     c19663
ax:  0xD92D
bx:  0x4CCF
dx:  0x052D

(0x1143*0x4CCF=0x052DD92D)

Expand/Collapse Item3996            add     dx, bx          ! dx-ax = dx-bx * (0x1800B0 / (2*2*2*2*5))
ax:  0xD92D
dx:  0x51FC

dx-ax = seconds * 19663

Now this value must be divided by 1080.  The div instruction (line 4000) places the quotient in ax and the remainder in dx.  Since the quotient may be greater than 2 bytes (as it is in our example - 0x00136F22) and won't fit in ax, a single div instruction cannot be used but the division must be broken up into 2 div instructions (lines 4000 and 4002).

The value 0x1800B0 does not appear to be relevant to this code.

Expand/Collapse Item3997            mov     cx, ax          ! (0x1800B0 = ticks per day of BIOS clock)
ax:  0xD92D
cx:  0xD92D
dx:  0x51FC
Expand/Collapse Item3998            mov     ax, dx
ax:  0x51FC
cx:  0xD92D
dx:  0x51FC
Expand/Collapse Item3999            xor     dx, dx
ax:  0x51FC
cx:  0xD92D
dx:  0x0000
Expand/Collapse Item4000            div     c1080
div divides dx-ax by the operand (in this case the value at the address c1080 (see line 4208), which is 1080) and places the quotient in ax and the remainder in dx.

ax:  0x0013
cx:  0xD92D
dx:  0x01D4

Expand/Collapse Item4001            xchg    ax, cx
ax:  0xD92D
cx:  0x0013
dx:  0x01D4
Expand/Collapse Item4002            div     c1080           ! cx-ax = dx-ax / (24*60*60 / (2*2*2*2*5))
ax:  0x6F22
cx:  0x0013
dx:  0x01BD
Expand/Collapse Item4003            mov     dx, ax          ! cx-dx = ticks since midnight
cx:  0x0013
dx:  0x6F22

(69955 seconds)*(18.2 clock ticks/second) =  1273181 = 0x00136D5D

0x00136D5D isn't equal to 0x00136F22 but it's close enough.  18.2 is an approximation for the clock ticks per second anyway.

4004           movb    ah, #0x01       ! Set system time
Expand/Collapse Item4005            int     0x1A

int 0x1A, ah=0x01 sets the timer tick count (the number of ticks since midnight) with the value from cx-dx.

4006   noclock:
4007
Expand/Collapse Item4008            mov     ax, 8(bp)
Expand/Collapse Item4009            mov     dx, 10(bp)      ! dx-ax = return value from the kernel
Expand/Collapse Item4010            pop     bp
Expand/Collapse Item4011            ret                     ! Return to monitor as if nothing much happened
I need to find out what the stack looks like when the kernel returns.  I need to find out where in the kernel code it returns.

Please submit a comment to the site if you know why.
4012
4013 ! Transform BCD number in al to a regular value in ax.
Expand/Collapse Item4014    bcd:    movb    ah, al
Expand/Collapse Item4015            shrb    ah, #4
Expand/Collapse Item4016            andb    al, #0x0F
On lines 4014-4016, the upper 4 bits of al are moved into ah.  For example, a value of 0x005A in ax would be converted to 0x050A.
Expand/Collapse Item4017            .data1 0xD5,10 ! aad    ! ax = (al >> 4) * 10 + (al & 0x0F)
aad converts an unpacked BCD in ax into a regular value.  The  author was apparently having some problems with the compiler so he used the actual machine instruction instead.
4018           ret                     ! (BUG: assembler messes up aad & aam!)
4019
Expand/Collapse Item4020  ! Support function for Minix-386 to make a BIOS int 13 call (disk I/O).
Before jumping to the minix-386 kernel (line 3933), either the address int86 (line 3902) or bios13 (line 3904) is pushed onto the stack.  This allows minix-386 to switch back to real mode and use any bios function call (int86) or use only bios function call int 0x13 (bios13).  int 0x13 allows disk I/O.  Obviously, the int86 option is more flexible.
4021   bios13:
Expand/Collapse Item4022            mov     bp, sp
Expand/Collapse Item4023            call    prot2real
prot2real() (line 4149) switches the system from protected mode to real mode.  The system must be in real mode to make bios function calls.
Expand/Collapse Item4024            sti                     ! Enable interrupts
The kernel disables the interrupts in anticipation of the jump to bios13. The stack is in flux in prot2real()(see line 4165) and necesitates the disabling.  After prot2real() returns, the interrupts can be reenabled.
4025
Expand/Collapse Item4026            mov     ax, 8(bp)       ! Load parameters
An int 0x13 bios call potentially uses the ax, bx, cx, dx, and es registers.  Since the calls to prot2real() (line 4023) and real2prot() (line 4039) could alter the contents of these registers, the values in these registers must be loaded and saved immediately before and after the int 0x13 bios call.
4027           mov     bx, 10(bp)
4028           mov     cx, 12(bp)
4029           mov     dx, 14(bp)
4030           mov     es, 16(bp)
Expand/Collapse Item4031            int     0x13            ! Make the BIOS call
Here are a few examples of int 0x13 calls:

int 0x13, ah=0x00 resets the drive.

int 0x13, ah=0x02 copies sectors from a hard drive or floppy (specified by dl) to memory.  al specifies how many sectors to copy, bits 0-5 of cl specify the sector number, dh specifies the head number and ch specifies the low 8 bits of the cylinder number and bits 6-7 of cl specify the high bits of the cylinder number.  es:bx specifies where in memory to load the sectors.  If the int 0x13, ah=0x02 call fails, the carry (C) flag is set.  int 0x13, ah=0x02 returns 0 in ah if successful and an error code in ah if unsuccessful.

int 0x13, ah=0x08 returns the device geometry of the drive specified by dldl is 0x80 for the first drive, 0x81 for the second, 0x82 for the third and 0x83 for the fourth.  The call returns the maximum sector number in bits 0-6 of cl and the maximum head number in dh.  Adding to the confusion, the value that int 0x13 returns for the maximum head number has a 0-origin.  This means that if int 0x13 returns a 15 for the maximum head number, there are actually 16 heads.  This is the reason that dh is incremented on line 3468.

4032           mov     8(bp), ax       ! Save results
4033           mov     10(bp), bx
4034           mov     12(bp), cx
4035           mov     14(bp), dx
4036           mov     16(bp), es
4037
Expand/Collapse Item4038            cli                     ! Disable interrupts
The stack is in flux in real2prot() (see line 4146) so the interrupts must be disabled.  The interrupts are reenabled after the return to the kernel (line 4043).
Expand/Collapse Item4039            call    real2prot
prot2real() (line 4150) switches the system from protected mode to real mode.  The system must be in real mode to make bios function calls.

real2prot() (line 4128) switches the system from real mode back to protected mode.

Expand/Collapse Item4040            mov     ax, #DS_SELECTOR ! Kernel data
Expand/Collapse Item4041
4041           mov     ds, ax
Before the code jumps back to the minix-386 kernel, ds must be reloaded with the minix-386 kernel's data segment selector.
Expand/Collapse Item4042            .data1  o32
Expand/Collapse Item4043            retf                    ! Return to the kernel
The o32 prefix causes the retf instruction to use the bottom 8 bytes on the stack for the return address rather than the bottom 4 bytes.  See line 3019 for details.
4044
Expand/Collapse Item4045  ! Support function for Minix-386 to make an 8086 interrupt call.
Expand/Collapse Item4046    int86:
int86 can handle all of the bios function calls whereas bios13 (line 4020) can only handle int 0x13 (disk I/O) bios function calls.  int86 can also make far calls to drivers not supplied by the kernel (see line 4065).  A few additional complexities are also introduced:

The 0xFF in the int 0xFF call (line 4087) must be replaced with the desired interrupt.  If a jump to a far address is desired, the far address must be pushed on the stack (line 4065) and the entire int 0xFF instruction must be replaced with a retf instruction (line 4066).

The minix-386 kernel counts clock ticks without relying on the bios. When the kernel jumps to the boot monitor to take care of a bios interrupt call, it can no longer count the clock ticks.  For this reason, the bios keeps track of the clock ticks until the return to the kernel.  I assume that bios13 (line 4020) does not keep track of the lost clock ticks because the function is shorter.  If you know the answer to this, please submit a comment to the site which will be displayed below.

Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: Apr 30 2004 11:24:51 GMT
Subject:  lost clock ticks
Reponse: As Kees J Bot said: "When bios13 was used the kernel would reroute the clock interrupt vector to a bit of code that counted lost ticks (...) DOSMinix runs under DOS instead, so several layers of cruft has been loaded on top of the BIOS. Rerouting the clock vector is now no longer a good idea, because DOS drivers may have linked their own code to it. So counting clock ticks was made the monitor's job (...) The reason that bios13 still appears in the latest monitor code is for backwards compatibility. The monitor is still able to boot a 1.7.0 kernel, (...)"

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


Expand/Collapse Item4047            mov     bp, sp
The stack looks like this:

Expand/Collapse Item4048            call    prot2real
prot2real() (line 4149) switches from protected mode to real mode.  In order to make an 8086 interrupt call, the system must be in real mode.
4049
Expand/Collapse Item4050            .data1  o32
Expand/Collapse Item4051            xor     ax, ax
The o32 prefix (0x66) converts the instruction xor ax, ax to xor eax, eax.  See the comment for line 3019.
4052           mov     es, ax          ! Vector & BIOS data segments
Expand/Collapse Item4053            .data1  o32
Expand/Collapse Item4054       eseg mov     0x046C, ax      ! Clear BIOS clock tick counter
This instruction moves the contents of eax (which is 0) into es:0x046C=0x0000:0x046C.  0x0000:0x046C is the memory location that holds the bios clock counter.  The number of clock ticks that accrue during the int86 call are returned in cx (see line 4118).  See the comment for lines 4045 and 4046.
4055
4056           sti                     ! Enable interrupts
4057
Expand/Collapse Item4058            movb    al, #0xCD       ! INT instruction
It is assumed that int86 has been called to invoke a bios function call.  However, if int86 has been called to jump to a far address for a driver, the value in al is overwritten on line 4066.
4059           movb    ah, 8(bp)       ! Interrupt number?
Expand/Collapse Item4060            testb   ah, ah
Expand/Collapse Item4061            jnz     0f              ! Nonzero if INT, otherwise far call
testb sets the zero flag (Z) if the contents of ah are zero.

jnz 0f jumps forward to the first 0: label (line 4067) if Z is not set.

Expand/Collapse Item4062            push    cs
Expand/Collapse Item4063            push    #intret+2       ! Far return address
The driver at the far address uses this segment:offset pair as a return value.  intret (line 4087) is the first byte of the retf; nop instructions.  intret+2 is the first byte after these two instructions (in other words, the first byte of the instruction on lines 4089-4090).
4064           .data1  o32
4065           push    12(bp)          ! Far driver address
Expand/Collapse Item4066            mov     ax, #0x90CB     ! RETF; NOP
If 8(bp) is 0, the int 0xFF instruction on line 4087 is replaced with the retf instruction (see lines 4059-4061).  However, since the int 0xFF instruction is 2 bytes and the retf instruction is only a single byte (0xCB), a nop (no operation) instruction (0x90) is added after the retf instruction to make up for the difference in instruction length.
Expand/Collapse Item4067    0: cseg mov     intret, ax      ! Patch `INT n' or `RETF; NOP' into code

The prefix cseg is used since cs:intret (and not ds:intret) is the address that is patched.  Note that any address within the code (like intret)  is an offset within the code segment (cs) and any address within the data (like c60 on line 4206) is an offset within the data segment (ds).

Expand/Collapse Item4068            jmp     .+2             ! Clear instruction queue

An instruction queue is a mechanism to decrease the time necessary to fetch instructions from RAM.  Several instructions are fetched at once instead of fetching one instruction at a time.  This works great most of the time.  However, after replacing the int 0xFF instruction, there will be a discrepency between the instruction queue and RAM.  The current instruction queue needs to be thrown out and replaced by a neue queue that reflects the current contents of the RAM.

The jmp instruction clears the instruction queue and then jumps to the address specified by the operand.

"." is replaced by the address of the first byte of the instruction.  Since the jmp instruction is 2 bytes, jmp .+2 jumps to the next instruction.

4069
Expand/Collapse Item4070            mov     ds, 16(bp)      ! Load parameters
An interrupt call or a call to a far address potentially uses the ds, es, ax, bx, cx, dx, si, di and bp registers as inputs and outputs.  The registers are loaded with the inputs on lines 4070-4085 and the results of the interrupt or far call are saved on lines 4095-4109.
4071           mov     es, 18(bp)
Expand/Collapse Item4072            .data1  o32
Expand/Collapse Item4073            mov     ax, 20(bp)
The o32 prefix converts the instruction mov ax, 20(bp) to mov eax, 20(ebp).  4 bytes (instead of 2 bytes) are transferred.
4074           .data1  o32
4075           mov     bx, 24(bp)
4076           .data1  o32
4077           mov     cx, 28(bp)
4078           .data1  o32
4079           mov     dx, 32(bp)
4080           .data1  o32
4081           mov     si, 36(bp)
4082           .data1  o32
4083           mov     di, 40(bp)
4084           .data1  o32
4085           mov     bp, 44(bp)
4086
Expand/Collapse Item4087    intret: int     0xFF            ! Do the interrupt or far call
This instruction is replaced by either an interrupt call or a retf instruction (see line 4067).
4088
4089           .data1  o32             ! Save results
4090           push    bp
Expand/Collapse Item4091            .data1  o32
Expand/Collapse Item4092            pushf
Expand/Collapse Item4093            mov     bp, sp
Expand/Collapse Item4094            .data1  o32
This instruction pushes the processor's flags onto the stack.  The processor's flags reflect the status of the processor and include the zero flag (Z), the carry flag (C), overflow (O), sign (S), etc.  The flags are saved at memory location 8+8(bp) (lines 4093-4094).
4095           pop     8+8(bp)         ! eflags
4096           mov     8+16(bp), ds
4097           mov     8+18(bp), es
4098           .data1  o32
4099           mov     8+20(bp), ax
4100           .data1  o32
4101           mov     8+24(bp), bx
4102           .data1  o32
4103           mov     8+28(bp), cx
4104           .data1  o32
4105           mov     8+32(bp), dx
4106           .data1  o32
4107           mov     8+36(bp), si
4108           .data1  o32
4109           mov     8+40(bp), di
4110           .data1  o32
Expand/Collapse Item4111            pop     8+44(bp)        ! ebp
This is the current stack:

4112
Expand/Collapse Item4113            cli                     ! Disable interrupts
The stack is in flux in real2prot() (see line 4146).  As I said earlier, I'm not sure if the interrupts need to be disabled to access the bios clock tick counter.  If you know the answer, please submit a comment to the site.
Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: May 02 2004 19:01:20 GMT
Subject:  Disable interrupts
Reponse: Interrupts should be disabled while reading the timer click count, at 40:6Ch, so that the 'timer ticks interrupt' does not update the count in the middle of reading the information.

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


4114
4115           xor     ax, ax
4116           mov     ds, ax          ! Vector & BIOS data segments
4117           .data1  o32
Expand/Collapse Item4118            mov     cx, 0x046C      ! Collect lost clock ticks in ecx
The lost clock ticks are returned to the minix-386 kernel in ecx.  The bios clock tick counter is at address ds:0x046C = 0x0000:0x046C.
4119
4120           mov     ax, ss
Expand/Collapse Item4121            mov     ds, ax          ! Restore monitor ds
p_gdt_desc (line 4246) is accessed on line 4133 in real2prot(). Since p_gdt_desc is not located at ds:p_gdt_desc = 0x0000:p_gdt_desc, ds must be set back to its original value before it was zeroized (see lines 4115-4116).
Expand/Collapse Item4122            call    real2prot
real2prot() (line 4129) switches the system from real mode to protected mode.
Expand/Collapse Item4123            mov     ax, #DS_SELECTOR ! Kernel data
Expand/Collapse Item4124            mov     ds, ax
Before the code jumps back to the minix-386 kernel, ds is reloaded with the minix-386 kernel's data segment selector.
4125           .data1  o32
4126           retf                    ! Return to the kernel
4127
Expand/Collapse Item4128  ! Switch from real to protected mode.
The process of switching from real mode to protected mode after the system has been powered on actually begins on line 3862.  Before continuing, make sure that you understand lines 3862-3927 (especially lines 3862-3897) and download Volume 3 of the Intel Architecture Software Developer's Manual.  I will refer to figures in this manual.

There are several remaining things that need to be done before the switch from real mode to protected mode is complete:

1)  The A20 address line must be enabled (see lines 4131 and 4170).

2)  The global descriptor table must be loaded (see line 4133).

3)  Control register cr3  must be loaded - cr3 is the page directory base register (see lines 4134-4136).

4)  Control register cr0 must be loaded - cr0 is the machine status register (see lines 4137-4140).

5)  A far jump (jmpf) must be made to force cs to use MCS_SELECTOR (line 4141).

6)  Segment registers ds, es and ss must be loaded with their new values (lines 4143-4146).

7)  The interrupt descriptor table must be loaded.  This is done in the kernel.

4129   real2prot:
4130           movb    ah, #0x02       ! Code for A20 enable
Expand/Collapse Item4131            call    gate_A20

gate_A20, ah=0x02 enables the A20 address lines.  See line 4170.

4132
Expand/Collapse Item4133            lgdt    p_gdt_desc      ! Global descriptor table
At this point, the global descriptor table (gdt) beginning at address p_gdt (line 4242) has been set.  The system now needs to know where in memory this global descriptor table is.  Note that the operand for lgdt is p_gdt_desc and not p_gdt.  The p_gdt_desc (line 4247) entry describes where in memory the gdt is and the gdt's length.  See lines 3871-3875.  The gdt's length is 8*8-1.  Note that lengths in the gdt are 0-indexed.
Expand/Collapse Item4134            .data1  o32
Expand/Collapse Item4135            mov     ax, pdbr        ! Load page directory base register
Expand/Collapse Item4136            .data1  0x0F,0x22,0xD8  ! mov   cr3, eax
Expand/Collapse Item4137            .data1  0x0F,0x20,0xC0  ! mov   eax, cr0
The o32 prefix converts the instruction mov ax, pdbr to mov eax, pdbr.  4 bytes are transferred.  pdbr is found on line 4282.

Since the control registers are not accessible by the 8086 instruction set (see line 3019), machine language must be used.

Note that pdbr has not been modified to this point (if the system has just been powered on).  Since pdbr is in the bss, its value is 0 (the bss is initialized to 0 on lines 3091-3098).  I don't believe that the kernel modifies pdbr.

Look at fig. 2-5 in Volume 3 of the Intel Architecture Software Developer's Manual.  When the system is powered on, paging is disabled (bit PG of cr0 is 0).  If paging is disabled, cr3 is ignored.  (See page 2-16 of the manual for the PCD and the PWT bits.)  I'm not sure why we bother setting cr3 to 0, since cr3 is ignored.  Previous versions of boothead.s did not modify cr3.  If you understand why we zeroize cr3, please submit a comment to the site.

Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: Apr 16 2004 18:50:47 GMT
Subject:  cr3 register value
Reponse: Minix kernel and Minix-vmd (Minix with virtual memory and X11) kernel use the same Monitor. Procedure real2prot is called by procedures bios13 and int86, where control is passed temporarily from kernel to the monitor. In those procedures a combination of prot2real and real2prot is needed to make the transfer of addressing from protected mode to real and then back to protected.

In real2prot cr0 is loaded with the value of msw (saved machine status word) and cr3 is loaded with pdbr (saved page directory base register), a non zero value then, so that when the system returns to protected mode the machine status and the location of the page directory are not lost so that the Minix-vmd kernel is able to continue using those information.

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


Expand/Collapse Item4138            .data1  o32
Expand/Collapse Item4139            xchg    ax, msw         ! Exchange real mode msw for protected mode msw
Expand/Collapse Item4140            .data1  0x0F,0x22,0xC0  ! mov   cr0, eax
msw is set on lines 3866-3869.  msw's PE (protection mode enable) bit is set.  (See page 2-16 of the manual for the PE bit.)  Loading cr0 with msw turns on the system's PE bit.
Expand/Collapse Item4141            jmpf    cs_prot, MCS_SELECTOR ! Set code segment selector
This instruction jumps to the next instruction.  This seemingly pointless jump forces the processor to load the code segment selector (MCS_SELECTOR) into cs and begin using the global descriptor table for address resolution.
4142   cs_prot:
Expand/Collapse Item4143            mov     ax, #SS_SELECTOR ! Set data selectors
Expand/Collapse Item4144            mov     ds, ax
Expand/Collapse Item4145            mov     es, ax
Expand/Collapse Item4146            mov     ss, ax
ds, es, and ss are set with descriptors from the global descriptor table in anticipation of the jump to the kernel.  Note that the value of ss is modified on line 4146.  Because the value of ss changes, any code that calls real2prot() must first disable the interrupts (with the cli instruction- see line 3823).
4147           ret
4148
Expand/Collapse Item4149  ! Switch from protected to real mode.
The opposite of what was done for real2prot() (line 4128) is done here.  prot2real() is called from ret386 (see line 3945), bios13 (see line 4023), and int86 (see line 4048).
4150   prot2real:
Expand/Collapse Item4151            lidt    p_idt_desc      ! Real mode interrupt vectors
The real mode interrupt vectors are found in memory locations 0x0000-0x03FF.  p_idt_desc (line 4251) describes this memory range.  This memory range is not touched by the kernel.  The first 2K is removed from the mem[] array on line 5487 of boot.c.  The mem[] array describes the unused memory ranges that the kernel can use.
Expand/Collapse Item4152            .data1  0x0F,0x20,0xD8  ! mov   eax, cr3
Expand/Collapse Item4153            .data1  o32
Expand/Collapse Item4154            mov     pdbr, ax        ! Save page directory base register
This is the counterpart to lines 4134-4136.
Expand/Collapse Item4155            .data1  0x0F,0x20,0xC0  ! mov   eax, cr0
Expand/Collapse Item4156            .data1  o32
Expand/Collapse Item4157            xchg    ax, msw         ! Exchange protected mode msw for real mode msw
Expand/Collapse Item4158            .data1  0x0F,0x22,0xC0  ! mov   cr0, eax
This is the counterpart to lines 4137-4140.
Expand/Collapse Item4159            jmpf    cs_real, 0xDEAD ! Reload cs register
This is the counterpart to line 4141.  0xDEAD is only a place holder.  The value of cs before the monitor jumps to the minix-386 kernel is patched in on line 3864.
4160 cs_real:
Expand/Collapse Item4161            mov     ax, #0xBEEF
Expand/Collapse Item4162  ds_real:
Expand/Collapse Item4163            mov     ds, ax          ! Reload data segment registers
Expand/Collapse Item4164 4164           mov     es, ax
Expand/Collapse Item4165            mov     ss, ax
0xBEEF is also a place holder.  The value of ds before the monitor jumps to the minix-386 kernel is patched in on line 3865.  This value is used to set ds, es, and ss.   Note that the value of ss is modified on line 4165.  Because the value of ss changes, any code that calls prot2real() must first disable the interrupts (with the cli instruction).  The kernel disables the interrupts before jumping to ret386, bios13, and int86.
4166
4167           xorb    ah, ah          ! Code for A20 disable
4168           !jmp    gate_A20
4169
Expand/Collapse Item4170  ! Enable (ah = 0x02) or disable (ah = 0x00) the A20 address line.
Real mode can directly access 1MB of memory (memory above 1MB can be accessed indirectly with the int 0x15 bios call) through address lines 0-19.  Protected mode (on the 386 and up) can access 4GB through address lines 0-31.

I could not find a clear explanation of the A20 address line.  This is only speculation but I believe that enabling the A20 address line doesn't enable only address line 20 but enables address lines 20-31.  This would allow the direct access of 4GB of memory.  If you know the function of the A20 address line, please submit a comment to the site.

Enabling and disabling the A20 address line is tricky.  The process is simplified on the proprietary MCA bus of the IBM PS/2.

Name: Christos Basil Karayiannis - Karditsa GREmail:  christos@kar.forthnet.grDate: Mar 18 2004 13:01:04 GMT
Subject:  A20 address line and its relationship with A21-A31
Reponse: When the PC is turned on A20 line is disabled. Without it being enabled the 20th address line is zero. This means that (for a 80386 or latter) not only address memory in the region 0-1MB but every even MB after that (0-1, 2-3, 4-5..etc) can be addressed. Certainly, for the system to capable to address every word in the 4 GB address space the A20 line should be enabled.

A short example could help illustrate the role of A20 line:

-----------------------

1 MB (1048576 bytes)
100000000000000000000

has A20 on (most significant bit)

-----------------------

1 MB - 2 MB e.g. 1572864 bytes
110000000000000000000

has A20 on (A20 corresponds to the second bit from the left)

------------------------

2 MB 2097152 bytes
1000000000000000000000

has A20 off (second bit from the left)

-----------------------

thus with A20 line disabled:
region 0-1 MB (one byte less than 1 MB actually) can be addressed. A20 line is 0.
region 1-2 MB (one byte less than 2 MB actually) can NOT be addressed. A20 line is 1.

Respond to Christos Basil Karayiannis - Karditsa GR's comment.


4171   gate_A20:
Expand/Collapse Item4172            cmp     bus, #2         ! PS/2 bus?
bus (line 4284) is set in get_bus() (line 3709).  bus is 0 for XT, 1 for AT, and 2 for MCA.
4173           je      gate_PS_A20
Expand/Collapse Item4174            call    kb_wait
kb_wait (line 4186) doesn't return until the keyboard input buffer isn't full.
Expand/Collapse Item4175            movb    al, #0xD1       ! Tell keyboard that a command is coming
The next sequence is tricky.  This sequence is for systems that have XT and AT buses.  This link may help you understand the sequence a little better.

There are two controllers for the keyboard, one on the motherboard and one inside the keyboard itself.  Data written to port 0x60 normally goes to the controller on the keyboard.  However, if the outb 0x60 instruction is preceded by writing 0xD1 to port 0x64, the data written to port 0x60 goes to the controller on the motherboard.  The controller on the motherboard is responsible for enabling and disabling the A20 address line.

Expand/Collapse Item4176            outb    0x64
